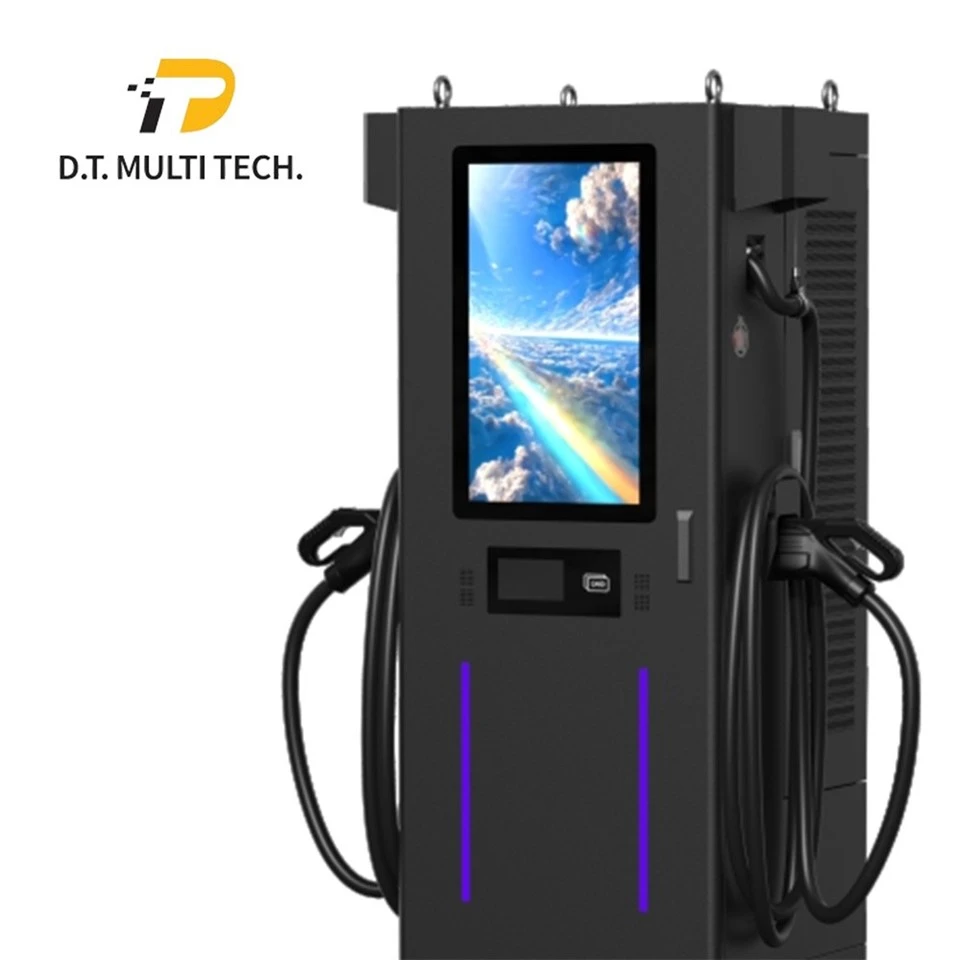

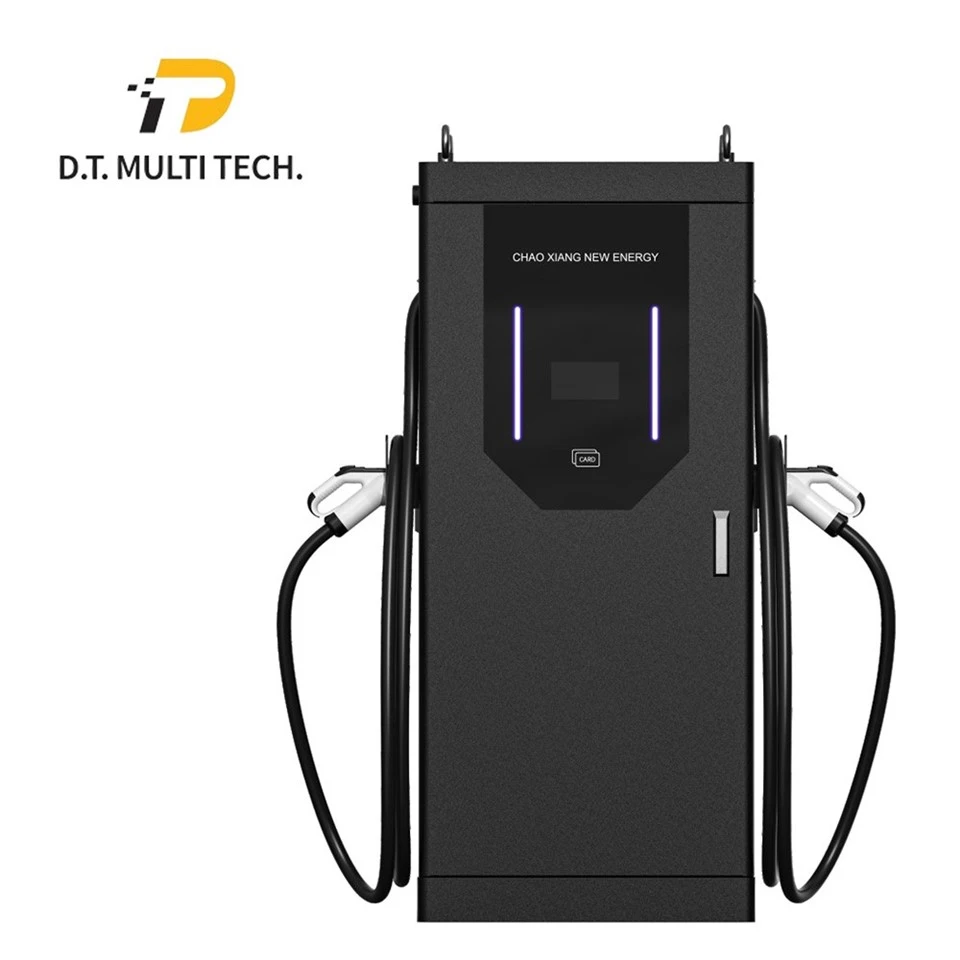

Commercial EV Charging Station
Accelerate your commercial fleet electrification with our ultra-fast commercial EV charging stations. Engineered for public charging networks, heavy-duty commercial fleets, and data center energy storage integration, this high-power DC fast-charging solution seamlessly combines high efficiency, modular scalability, and software compatibility.
High-Power Architecture for Public and Fleet Operations
Designed to meet the high-turnover demands of highway service areas and busy commercial hubs, this charging station offers continuous output options of 320kW, 360kW, and 400kW. Its future-proof modular design supports power upgrades; as heavy-duty EV battery capacities increase, your infrastructure can seamlessly scale up to 600kW.
Products Description
Dual-Gun Simultaneous Fast Charging
– 320-400kW ultra-high power: ultra-fast energy replenishment for commercial fleets, vehicles, and buses.
– Two guns for intelligent allocation: supports dual-vehicle charging (500A×2) or single-gun full power output.
Advanced Safety Features
– Comprehensive safety features such as over-current, over-voltage, short circuit protection, etc. ensuring safe operation.
Intelligent Interactive System
– OCPP1.6J protocol: seamless access to charging operation platform, support remote monitoring / rate setting / fault diagnosis.
Solution for Commercial Charging
– Modular design: support power stacking upgrade, expandable to 600kW in the future.
– Customized service: brand UI interface, in-depth payment system integration.
Technical Specifications
| Output Power | 320kW | 360kW | 400kW |
| Current Range | 1-250A | ||
| Input Voltage | AC400V±20% | ||
| Frequency | 50/60Hz | ||
| Output Voltage | 200-1000VDC | ||
| Constant Power Range | 300-1000VDC | ||
| Charging Gun | 5m charging gun (length customized available) | ||
| Communication Interface | 4G / Ethernet / WIFI | ||
| Communication Protocol | OCPP 1.6J | ||
| Stable Current Accuracy | ≤1% | ||
| Human Machine Interface | 7-inch color touchscreen | ||
| Efficiency | ≥96% | ||
| Power Factor | ≥0.99 | ||
| Metering Accuracy | Level 1 | ||
| IP Grade | IP55 | ||
| Cooling | Fan cooling | ||
| Electrostatic Discharge Immunity | Class 4 | ||
| Surge Immunity | Class 4 | ||
| Working Temperature | -30°C~50°C | ||
| Working Humidity | 5%~95% no condensation | ||
| Altitude | ≤2000m | ||
| Product Dimension WxDxH | 750mm*720mm*1700mm (7-inch screen) 1000mm*770mm*1900mm (31.5-inch screen) | ||
Smart Dual-Gun Dynamic Allocation
Instead of splitting a fixed amount of power equally regardless of a vehicle's state of charge, the station's internal control architecture continuously communicates with each connected battery management system (BMS). When two electric vehicles plug in simultaneously, the system dynamically routes the optimal current to each vehicle based on its real-time acceptance rate, delivering up to 500A per gun. If one vehicle approaches a full charge and its intake slows down, the surplus power is immediately redirected to the second vehicle to accelerate its top-off.
When only a single heavy-duty vehicle is connected, the station channels its full power output through one gun for maximum rapid energy replenishment. This intelligent distribution architecture optimizes daily charging cycles, prevents grid demand spikes, and significantly increases the daily turnover rate of your commercial charging operations.
FAQ
Q: What specific international safety and quality certifications does this station hold?
A: The station is fully CE certified. The internal electronics feature Class 4 Electrostatic Discharge (ESD) Immunity and Class 4 Surge Immunity, ensuring complete structural protection against localized grid spikes and lightning strikes.
Q: How does the modular design accommodate future grid or vehicle upgrades?
A: The station is engineered with a modular power stacking architecture. The internal power modules can be scaled and upgraded to output up to 600kW within the same physical enclosure.
Q: What are the cooling and thermal management mechanisms for continuous high-power operation?
A: The unit utilizes a smart forced-air fan cooling system. Combined with an overall operating efficiency of ≥96%, thermal dissipation is strictly controlled to ensure stable output even under peak continuous load.
Q: What is the standard warranty period, and what is the expected lifespan of the core components?
A: The standard product warranty is 2 years, with extended warranty options available upon request. The core internal components and power modules are rated for an operational lifespan exceeding 10 years under standard maintenance conditions.
Q: Can the unit withstand extreme outdoor environments, such as heavy rain, dust storms, or freezing temperatures?
A: The enclosure is rated at IP55 for water and dust protection and operates reliably within a wide temperature range of -30°C to 50°C. For coastal or highly corrosive environments, optional C4 or C5 anti-corrosion cabinet coatings can be specified.
