Xiamen D.T. Multi Tech Co., Ltd. is one of the most reliable manufacturers and suppliers of 4kw single phase inverter in China. With abundant experience, we warmly welcome you to wholesale cheap 4kw single phase inverter from our factory. If you have any enquiry about cooperation, please feel free to email us.
High-Efficiency Solar Solution

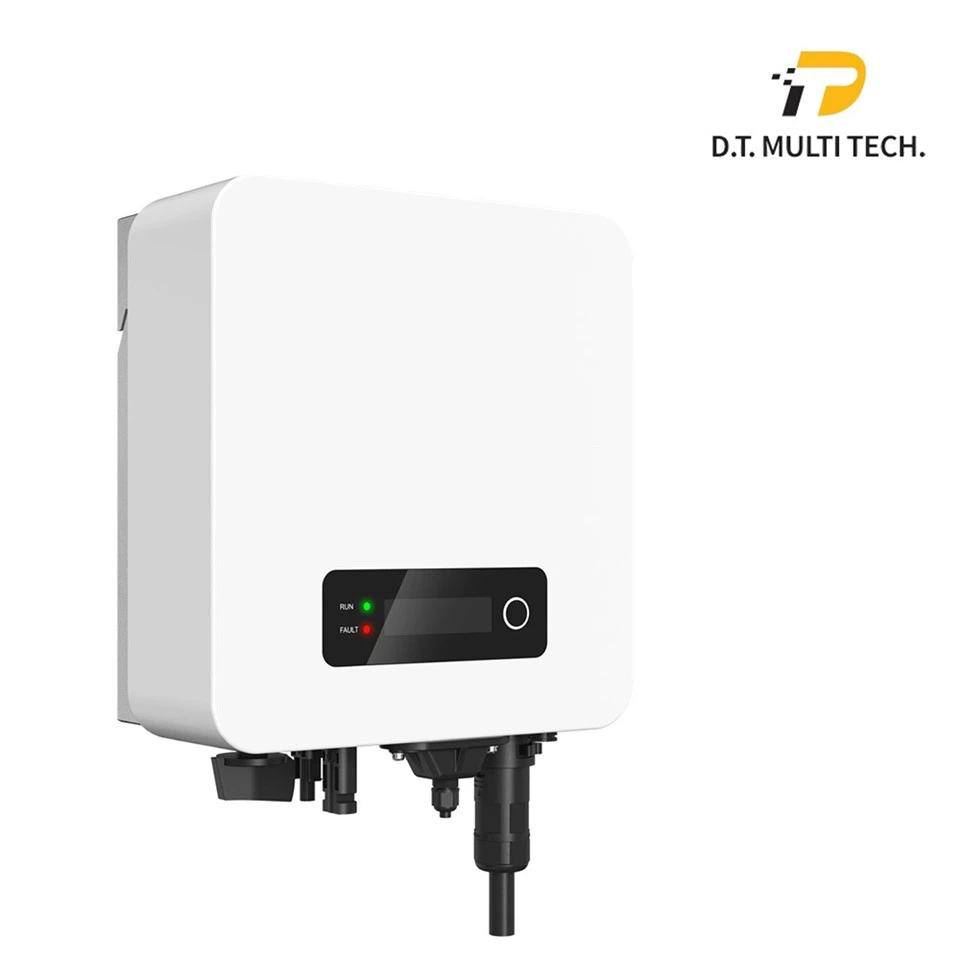

Maximize your solar energy harvest with the 4DTL2-G3, a premium single-phase string inverter designed specifically for modern residential PV systems. As a trusted wholesale supplier, DTSolarPower provides this high-performance unit to help EPC contractors and solar installers deliver reliable, grid-compliant energy solutions to their clients.
Technical Excellence & Performance
The 4DTL2-G3 is engineered for efficiency and durability. With a maximum efficiency of 97.7% and a European weighted efficiency of 97.2%, it ensures minimal energy loss during the DC-to-AC conversion process.
- Optimized Energy Harvest: The ultra-low start-up voltage of 70V allows the system to begin generating power earlier in the morning and continue later into the evening compared to standard inverters.
- High-Current Compatibility: Featuring a max input MPPT current of 15A, this inverter is fully compatible with the latest generation of high-power, large-format solar modules.
- Flexible Design: The single MPPT tracker and transformerless topology make it a lightweight, compact choice for straightforward domestic installations.
Product Specifications
| Model | 1.1DTL3-G3 | 1.6DTL2-G3 | 2.2DTL2-G3 | 2.7DTL2-G3 | 3DTL2-G3 | 3.3DTL2-G3 | 4DTL2-G3 |
| Input (DC) | |||||||
| Max. input voltage | 500V | 550V | |||||
| Rated input voltage | 360V | ||||||
| Start-up voltage | 70V | ||||||
| MPPT operating voltage range | 50-500V | 50-550V | |||||
| Number of MPP trackers | 1 | ||||||
| Number of DC inputs | 1 | ||||||
| Max. input MPPT current | 13A | 14A | 15A | ||||
| Max. input short circuit current | 17.5A | 20A | |||||
| Output (AC) | |||||||
| Rated output power | 1100W | 1600W | 2200W | 2700W | 3000W | 3300W | 4000W |
| Max. apparent power | 1100VA | 1600VA | 2200VA | 2700VA | 3000VA | 3300VA | 4000VA |
| Max. output current | 5.3A | 7.7A | 10.6A | 13A | 14.5A | 16A | 19.3A |
| Rated output voltage | L/N/PE, 220Vac, 230Vac | ||||||
| Output voltage range | 180-276Vac | ||||||
| Rated output frequency | 50 / 60Hz | ||||||
| Output frequency range | 45-55Hz / 55-65Hz | ||||||
| Active power adjustable range | 0-100% | ||||||
| THDi | <3% | ||||||
| Power factor | 0.8 leading-0.8 lagging | ||||||
| Efficiency | |||||||
| Max. efficiency | 97.30% | 97.70% | |||||
| European efficiency | 96.70% | 97.20% | |||||
Robust Protection & Safety Standard
Safety is non-negotiable in residential solar. This IP65 rated residential solar inverter integrates industrial-grade protection mechanisms to safeguard the home and the grid.
- Advanced Safety Features: Includes DC reverse polarity protection, anti-islanding protection, leakage current protection, and ground fault monitoring as standard.
- Surge Protection: Equipped with Type III SPD (Surge Protective Device) for both PV and AC sides, shielding the sensitive internal electronics from atmospheric electrical interference.
- Integrated DC Switch: Simplifies maintenance and enhances onsite safety for installers.
FAQ
Q: How does the low start-up voltage benefit the end-user?
A: The start-up voltage is only 70V, which means the system begins generating power earlier in the morning and shuts down later in the evening, increasing the total daily yield.
Q: What level of surge protection is included?
A: The inverter features built-in Type III SPD (Surge Protective Device) for both the PV (DC) and AC sides, protecting the internal circuitry from voltage spikes.
Q: Is this inverter compliant with local grid standards?
A: We provide full certification for major markets, including EN50549, VDE-AR-N 4105, and IEC62109, ensuring seamless grid connection and safety.
Q: What is the IP rating for outdoor installation?
A: The series is IP65 rated, making it completely dust-tight and protected against water jets, suitable for harsh outdoor environments.
Q: Are you able to provide technical support for system sizing?
A: Absolutely. Our engineering team can assist with string design and system sizing to ensure the SOFAR 4KTL2-G3 is perfectly matched to your specific PV module configuration.
