Xiamen D.T. Multi Tech Co., Ltd. is one of the most reliable manufacturers and suppliers of portable dc fast charger in China. With abundant experience, we warmly welcome you to wholesale cheap portable dc fast charger from our factory. If you have any enquiry about cooperation, please feel free to email us.
Products Description

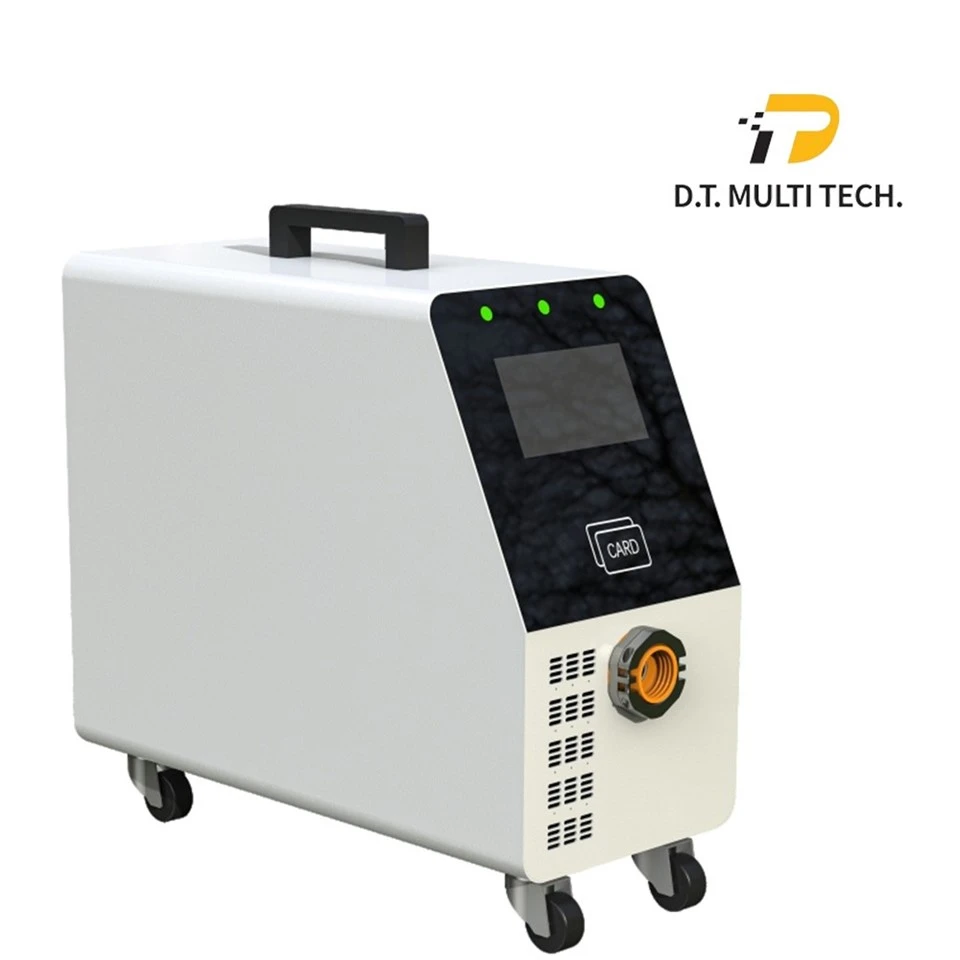

The 20kW-40kW Portable DC Fast Charger delivers high-power, flexible, and rapidly deployable charging for commercial operations, mobile fleets, and auto service providers. Engineered for maximum versatility, this mobile EV charging station provides a plug-and-play fast charging solution without requiring permanent infrastructure installation or complex site engineering.
Featuring a wide 150V–1000VDC voltage output, industrial IP54 protection, and full OCPP 1.6J network integration, this unit bridges the gap between fixed DC fast charging stations and mobile emergency power demands.
Key Advantages
1. Portable Fast Charging, Boundless Journey
– 30kW power output: 1-hour fast charging, meeting the emergency charging needs of passenger cars / logistics vehicles
– Portable charging: -30℃ to 55℃ temperature all-weather operation, IP54 protection level
2. Mobile EV Charger Performance
– Dual network 4G / LAN communication, charging data uploaded to the cloud platform in seconds
– Compact body (290*670*605mm): can be loaded in the trunk of a car, and can be quickly deployed by one person in 3 minutes
3. Intelligent Core, Minimalist Control
– 7-inch color touchscreen: real-time monitoring of 18 core parameters such as voltage, current, and temperature
– Three modes to start: scan QR code / swipe card / password
Products Description
| Model | CXE-D21DB | CXE-D31DB | CXE-D41DB |
| Output Power | 20kW | 30kW | 40kW |
| Current Range | 0-70A | 0-100A | 0-133A |
| Input Voltage | AC400V±20% | ||
| Frequency | 50/60Hz | ||
| Output Voltage | 150-1000VDC | ||
| Constant Power Range | 300-1000VDC | ||
| Charging Gun | 5m charging gun (length customized available) | ||
| Communication Interface | 4G / Ethernet | ||
| Communication Protocol | OCPP 1.6J | ||
| Stable Current Accuracy | ≤1% | ||
| Human Machine Interface | 7-inch color touchscreen | ||
| Efficiency | ≥96% | ||
| Power Factor | ≥0.99 | ||
| Current Sharing Coefficient | ≤5% | ||
| Harmonic Current | ≤5% | ||
| Noise | ≤65db | ||
| Metering Accuracy | Level 1 | ||
| IP Grade | IP54 | ||
| Standby Power | ≤N*50W | ||
| Cooling | Fan cooling | ||
| Electrostatic Discharge Immunity | Class 4 | ||
| Surge Immunity | Class 4 | ||
| Working Temperature | -30°C~50°C | ||
| Working Humidity | 5%~95% no condensation | ||
| Altitude | ≤2000m | ||
| Product Dimension WxDxH | 290mm*670mm*605mm | ||
All-Weather Industrial Durability
Designed for demanding field operations, this Portable DC Fast Charger features a rugged IP54-rated weatherproof enclosure and Class 4 surge and electrostatic discharge protection to keep your business running smoothly regardless of the elements.
With an operating temperature range spans from -30°C to +50°C and active fan cooling, the unit maintains high conversion efficiency without overheating or throttling power during peak heat or freezing winter conditions. Built with a solid mobile chassis and high-grade internal insulation, it absorbs the vibrations and bumps typical of transport in rescue vehicles and commercial service trucks, giving fleet operators and roadside assistance crews a durable, highly dependable charging unit that withstands daily heavy-duty outdoor use.
FAQ
Q: What input power connection is required to operate this charger at full capacity?
A: The unit requires a standard 3-phase AC 400V (±20%) grid connection at 50/60Hz. To achieve the maximum 40kW DC output, your power supply line must be capable of delivering the corresponding AC current (approx. 60–70A per phase).
Q: Which EV charging connector standards do you support, and can we switch connector types?
A: We offer factory-installed connector options for CCS1 (North America/Japan), CCS2 (Europe/Australia/SE Asia), GB/T (China), and Tesla (NACS).
Q: How fast can the 30kW or 40kW model actually charge a stranded electric vehicle?
A: A 30kW–40kW DC unit delivers direct current directly to the battery, bypassing the vehicle's slow onboard AC charger. It typically provides roughly 100–150 km (60–90 miles) of driving range in 30 to 45 minutes, making it ideal for rapid emergency top-ups or fast turnarounds in service bays.
Q: Can a single technician easily load, transport, and deploy this charger in an emergency vehicle?
A: Absolutely. Measuring 290 × 670 × 605 mm, the compact cabinet fits inside standard SUV boots, commercial vans, or rescue truck compartments. Built with heavy-duty castors and an ergonomic pull handle, a single operator can roll out and activate the charger within 3 minutes.
Q: What international safety certifications and testing standards does this product meet?
A: The charger holds full CE compliance and adheres to IEC 61851 and IEC 62196 international EV charging standards, ensuring smooth customs clearance and regulatory approval across Europe, Latin America, Asia, and the Middle East.
