Xiamen D.T. Multi Tech Co., Ltd. is one of the most reliable manufacturers and suppliers of industrial energy storage 418kwh in China. With abundant experience, we warmly welcome you to wholesale cheap industrial energy storage 418kwh from our factory. If you have any enquiry about cooperation, please feel free to email us.

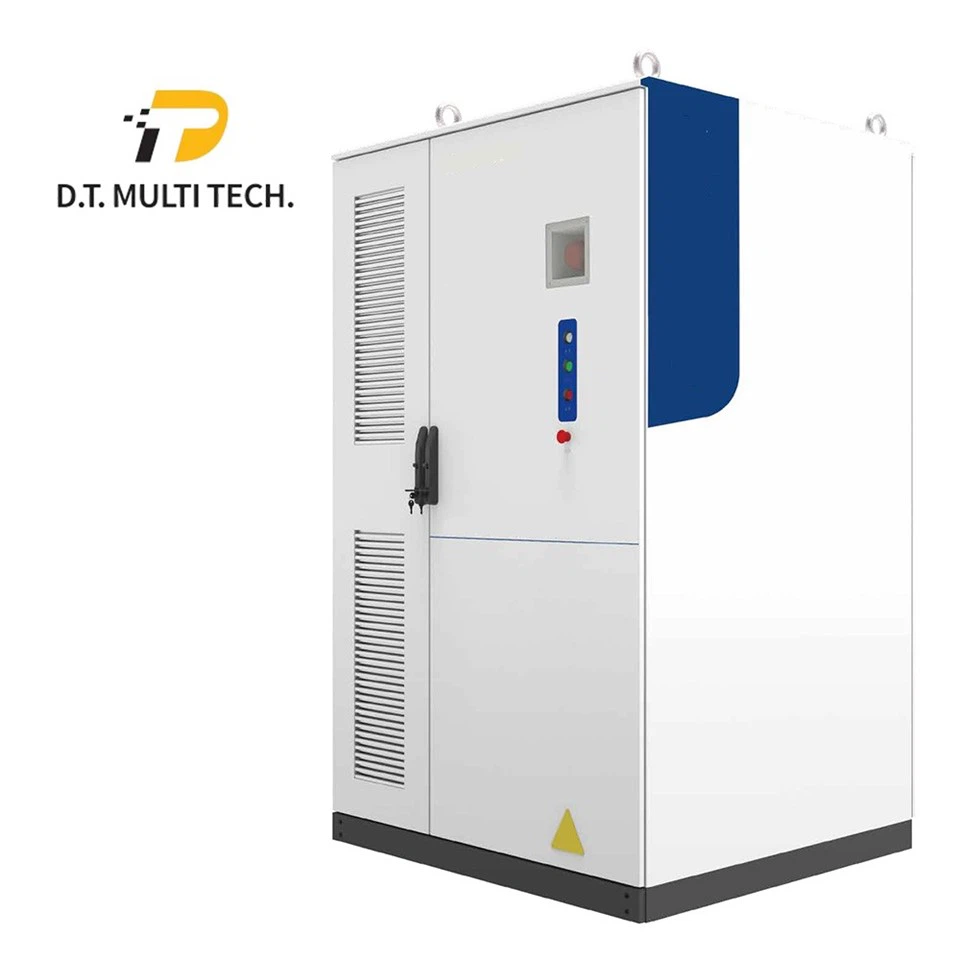

Industrial Energy Storage 418kWh

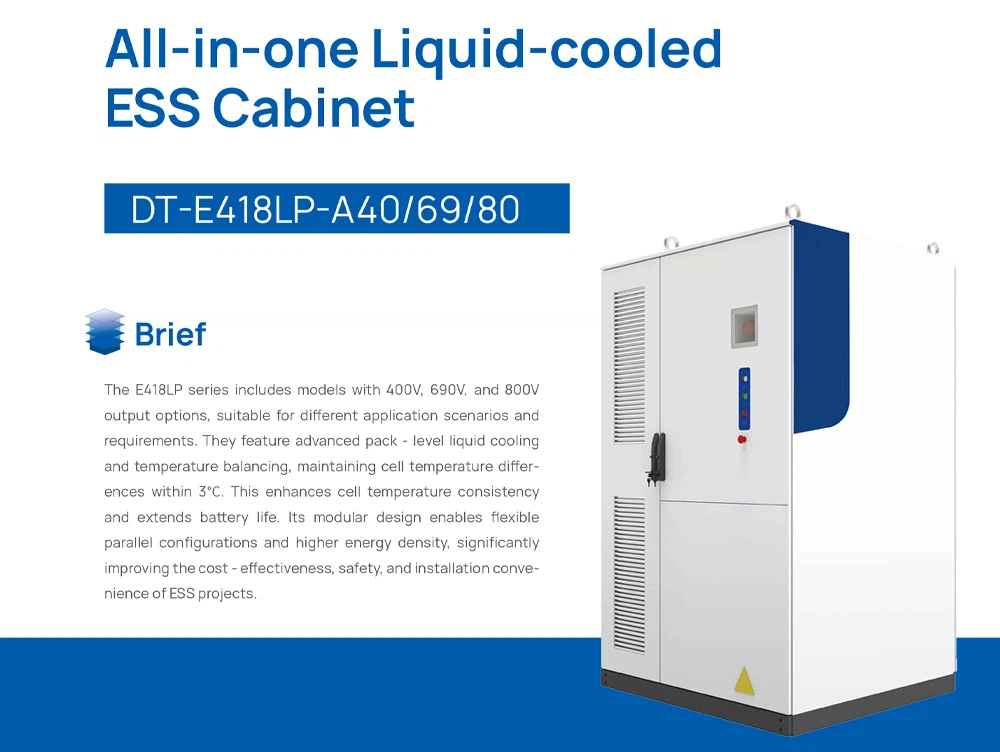

Maximize your energy independence and optimize operational costs with the Industrial Energy Storage 418kWh system. Engineered for large-scale commercial and industrial (C&I) applications, this All-in-one Liquid-cooled ESS Cabinet represents the next generation of battery energy storage, combining high-density LFP technology with advanced thermal management.
Optimized Thermal Management: Why Liquid Cooling Matters
Unlike traditional air-cooled systems, our 418kWh ESS cabinet utilizes a sophisticated Liquid Cooling + Forced Air Cooling hybrid mechanism. This ensures a temperature variance of less than 3°C across all cells, significantly extending the cycle life to over 8,000 cycles. For an EPC or project developer, this translates to a lower Levelized Cost of Storage (LCOS) and enhanced system reliability in harsh environments.
Smart Communication & Monitoring
Equipped with Modbus TCP/IP protocol, our ESS cabinet allows for real-time remote monitoring and O&M. Facility managers can track state-of-charge (SoC), cell health, and cooling performance from any centralized EMS platform.
Expert Engineering Support: As a leading provider of industrial energy storage 418kWh solutions, we offer full technical consulting, from Single Line Diagrams (SLD) to local commissioning support in Southeast Asia and beyond.
Products Description
| DC Side | ECO-E418LP-A40 | ECO-E418LP-A69 | ECO-E418LP-A80 |
| Cell Type | LFP / 314 Ah | ||
| Pack Configuration | 52.248 kWh / 1P52S | ||
| System Configuration | 418 kWh / 1P416S | ||
| Rated DC Voltage | 1331.2 V | ||
| DC Voltage Range | 1164.8 - 1497.6 V | ||
| Max. Charge/Discharge Rate | 0.25 P | 0.5 P | 0.5 P |
| Max. Depth of Discharge | 100% (25 ± 2 °C) | ||
| AC Side | |||
| Rated Output Power | 100 kW | 210 kW | 210 kW |
| Rated AC Voltage | 400 V | 690 V | 800 V |
| AC Voltage Range | -0.05 | ||
| Grid Type | 3W+PE | ||
| Rated Frequency | 50 Hz / 60 Hz | ||
| Power Factor | 0.99/-1 - +1 | ||
| THDi | ≤3% | ||
| DC Ratio | <0.5% Ip n | ||
| General | |||
| Max. Round Trip Efficiency | 89% | ||
| Cycle Life | ≥ 8,000 cycles | ||
| Communication | Modbus TCP/IP | ||
| Fire Suppression System | Aerosol | ||
| Ingress Rating | IP55 | ||
| Cooling | Liquid cooling+Forced air cooling | ||
| Operating Temperature | -25°C-55°C (Derating after 45°C) | ||
| Anticorrosion Rating | C4 (C5 optional) | ||
| Humidity | 0-95% RH (non-condensing) | ||
| Noise | ≤ 80 dB | ||
| Altitude | 3000m (Derating above 2000m) | ||
| Dimensions (W*D*H) | 1,500*1,350*2,400 mm | ||
| Weight | 3,800 kg | ||
| Safety/EMC | UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 | ||
| Grid code | EN50549-1/-10, EN50549-2/-10, PN-EN-50549-1/-2 | ||
Versatile Application Scenarios
- Peak Shaving & Load Shifting: Reduce demand charges by discharging during peak tariff hours.
- Microgrid Support: Provide stable power for remote mining sites, islands, or areas with weak grid infrastructure.
- EV Fast-Charging Integration: Buffer the grid impact of high-power electric vehicle charging stations.
- Renewable Energy Firming: Smooth out the intermittency of large-scale solar or wind farms.
FAQ
Q: What fire suppression protocols are integrated into the cabinet?
A: Safety is multi-layered. We use an **Aerosol Fire Suppression System** triggered by smoke and heat sensors. Additionally, the BMS provides four levels of protection (Warning, Protection, Hard-Trip, and Fuse) to prevent thermal runaway at the cell level.
Q: What is the Ingress Protection (IP) rating for coastal or high-dust environments?
A: The cabinet is **IP55 rated**, providing excellent protection against dust and water. For coastal projects, we offer an optional **C5 anti-corrosion coating** to withstand high-salinity air.
Q: Does the system support "Black Start" capabilities for microgrids?
A: Yes, the ECO-E418LP series supports Black Start, allowing the system to energize a local microgrid or facility independently during a total grid outage.
Q: How do we handle a single module failure without shutting down the whole system?
A: The system features a cluster-level management design. If one battery string or module reports an error, the BMS can isolate that specific string while allowing the rest of the cabinet to continue operating at reduced capacity.
Q: What is the noise level during full-load operation?
A: The maximum noise level is <80dB at 1 meter. This is standard for industrial equipment, but we recommend a minimum 5-meter buffer from residential or office windows.
