Xiamen D.T. Multi Tech Co., Ltd. is one of the most reliable manufacturers and suppliers of black solar panel in China. With abundant experience, we warmly welcome you to wholesale cheap black solar panel from our factory. If you have any enquiry about cooperation, please feel free to email us.

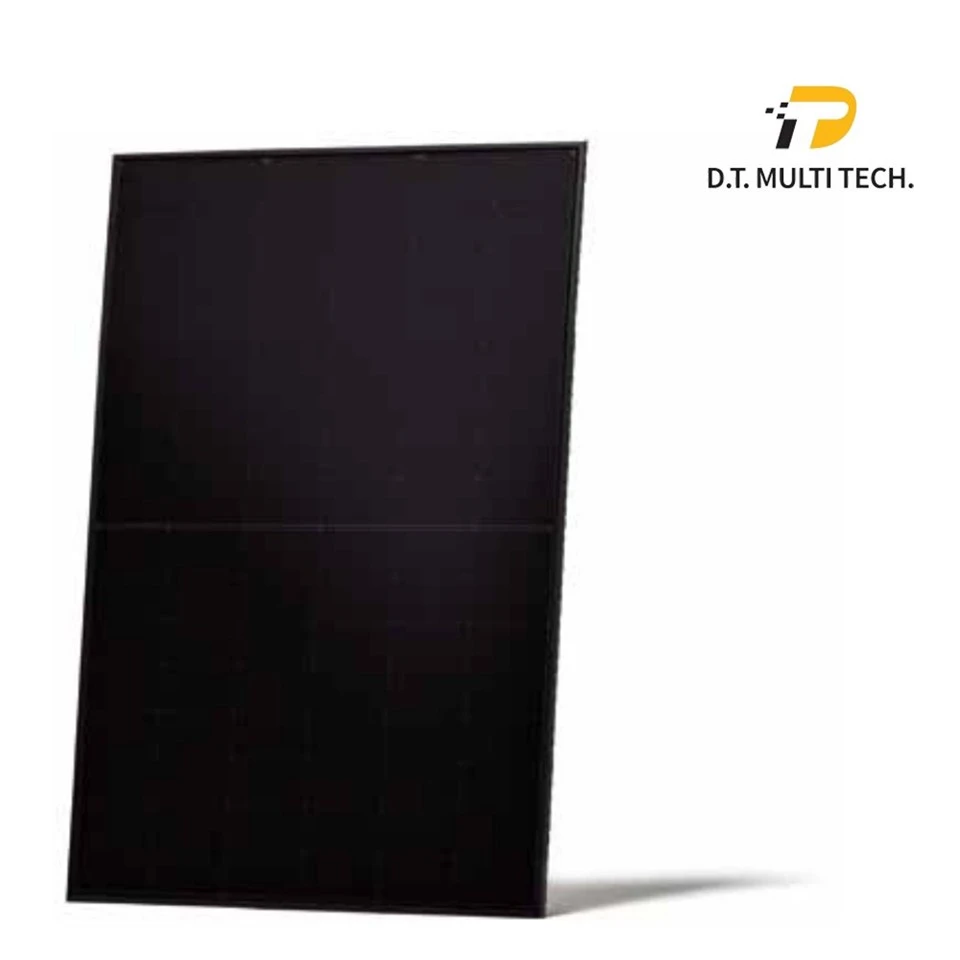

Black Solar Panel
Upgrade your residential and commercial energy projects with our premium all-black dual glass solar modules. Engineered with JinkoSolar's advanced Tiger Neo N-type TOPCon technology and HOT 3.0 cell architecture, this series delivers high efficiency, superior low-light performance, and sleek aesthetic integration for modern rooftop installations.
Whether you are an EPC contractor, regional distributor, or solar installer, our N-type TOPCon all-black solar modules provide the perfect balance of long-term reliability, lower levelized cost of electricity (LCOE), and max logistics efficiency for bulk supply.
Key Performance Highlights
N-type Technology
N-type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low light performance.
HOT 3.0 Technology
N-type modules with Jinko Solar's HOT3.0 technology offer better reliability and efficiency.
Mechanical Load Enhanced
Certified to withstand: 6000 Pa front side max static test load 4000 Pa rear side max static test load
SMBB Technology
Better lighttrapping and current collection to improve module power output and reliability.
Anti-PID Guarantee
Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
Mechanical Characteristics
| Cell Type | N- type Mono-crystalline |
| No. of cells | 96 (48×2) |

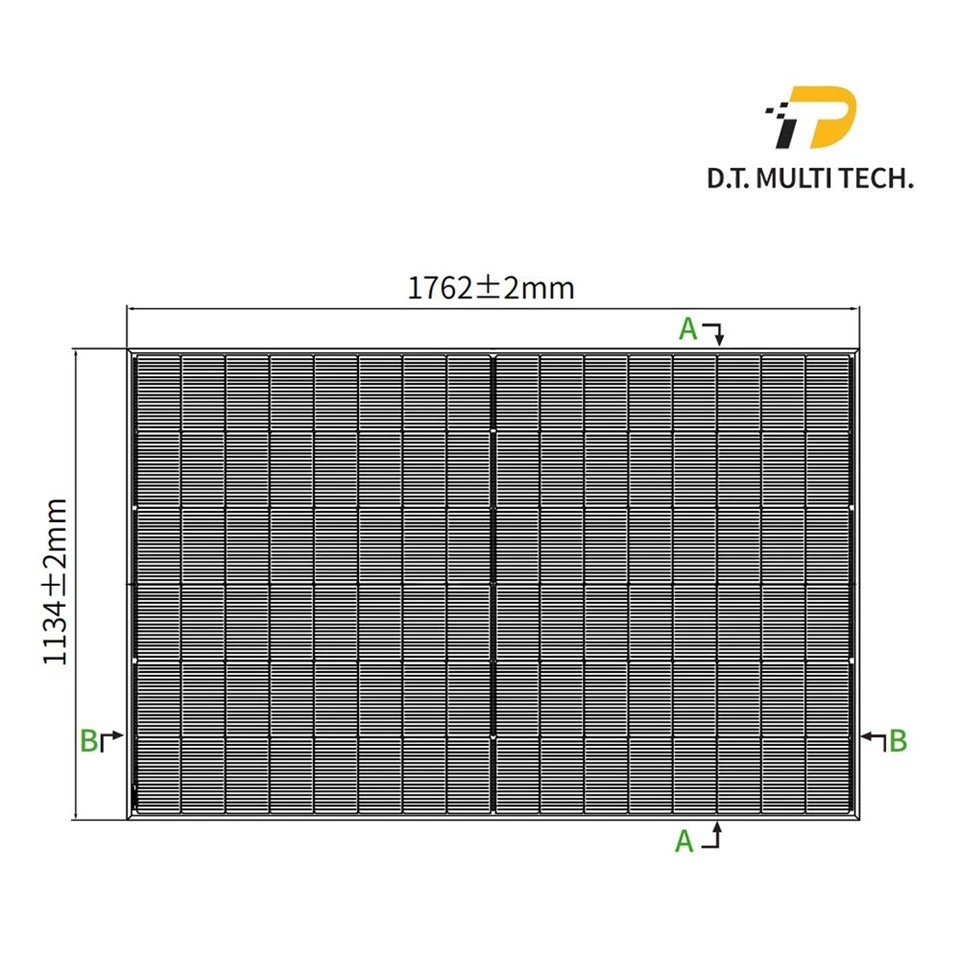

| Dimensions | 1762x1134X30 mm |
| Weight | 24.0 kg |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | JK03M/JK03M2/Others* |
| Output Cables (Including Connector) | 4.0 mm2 (+):400 mm, (-):200 mm or Customized Length |
Durability Against Extreme Environment
In real-world project deployments, climate adaptability directly determines the 30-year return on investment for any PV power plant. Engineered to withstand the earth's most challenging environmental conditions, our Black Solar Panel features a dual-glass construction with 2.0mm front and rear tempered glass for complete structural sealing.
For coastal and high-humidity applications, the module has passed rigorous IEC 61701 salt mist corrosion testing to effectively prevent internal electrode oxidation and capacity loss. In agricultural PV and livestock installations, its IEC 62716 certified ammonia resistance ensures long-term operational stability despite elevated chemical exposure. Reinforced by an exceptional mechanical load capacity-certified for up to 6000 Pa front static load under severe snow and 4000 Pa rear wind pressure-this series maintains structural integrity and delivers consistently high power yields through severe storms, heavy snowfalls, and aggressive marine microclimates.
FAQ
Q: How does this All-Black panel perform in low-light environments?
A: Utilizing HOT 3.0 cell architecture and SMBB (Super Multi-Busbar) light-trapping technology, these modules exhibit excellent spectral response in early morning, late afternoon, and overcast conditions.
Q: What specific product and performance warranties do you offer for this module series?
A: We offer a 25-year product warranty covering workmanship and materials, alongside a 30-year linear performance warranty. Performance degradation is capped at maximum 1.0% in Year 1 and 0.40% annually from Years 2 to 30, guaranteeing at least 87.4% nominal power output at Year 30.
Q: Which international certificates are available for customs clearance and bankability in my country?
A: The modules are fully certified under IEC 61215:2021 and IEC 61730:2023 for safety and quality, IEC 61701 (Salt Mist), IEC 62716 (Ammonia), and IEC 62804 (PID resistance). Factory management meets ISO 9001, ISO 14001, and ISO 45001 standards.
Q: Can these panels withstand severe snow loads or high wind gusts in extreme weather regions?
A: Yes. The module frame and glass assembly are certified for extreme static mechanical loads: up to 6000 Pa on the front side (heavy snow) and 4000 Pa on the rear side (strong wind pressure).
Q: What connector type is used, and can you supply customized cable lengths for specific racking layouts?
A: Standard units ship with standard IP68 junction boxes and JK03M / JK03M2 connectors. Genuine MC4 or MC4-EVO2 connectors, as well as customized cable lengths (standard is +400mm / -200mm), are available upon request for bulk orders.
