Xiamen D.T. Multi Tech Co., Ltd. is one of the most reliable manufacturers and suppliers of all in one solar street light in China. With abundant experience, we warmly welcome you to wholesale cheap all in one solar street light from our factory. If you have any enquiry about cooperation, please feel free to email us.
Products Description

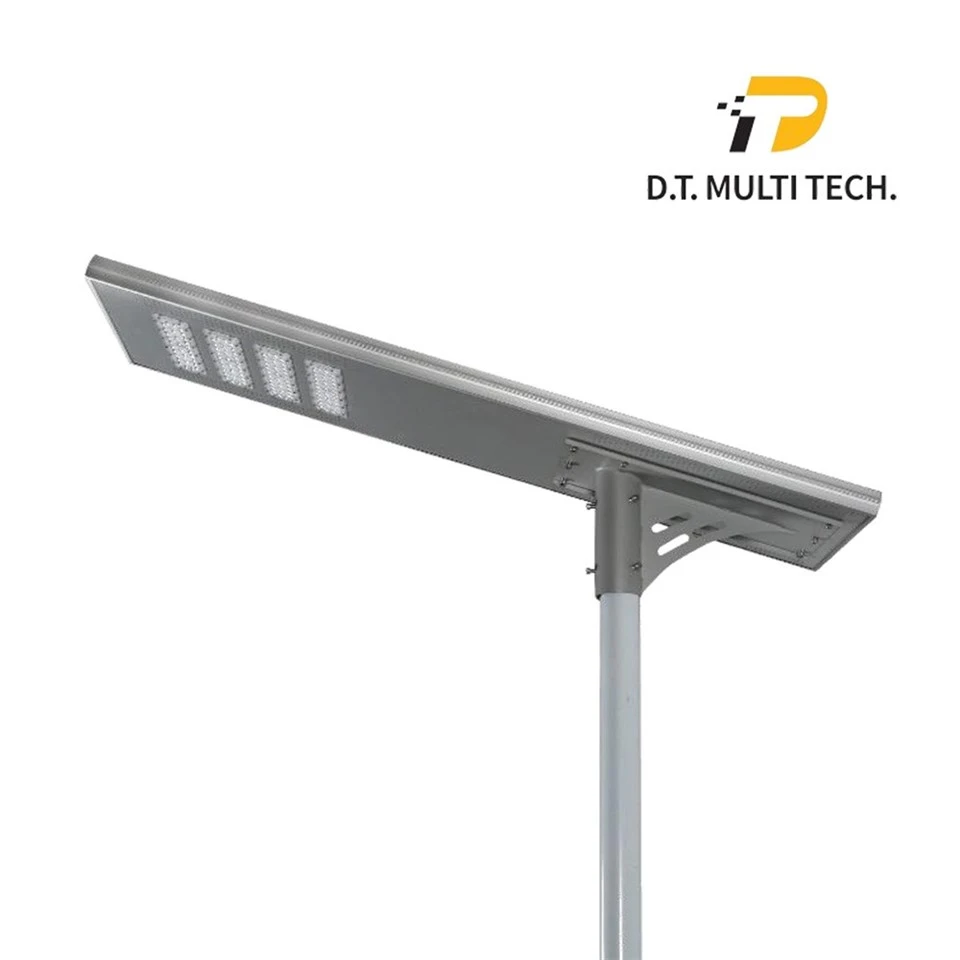

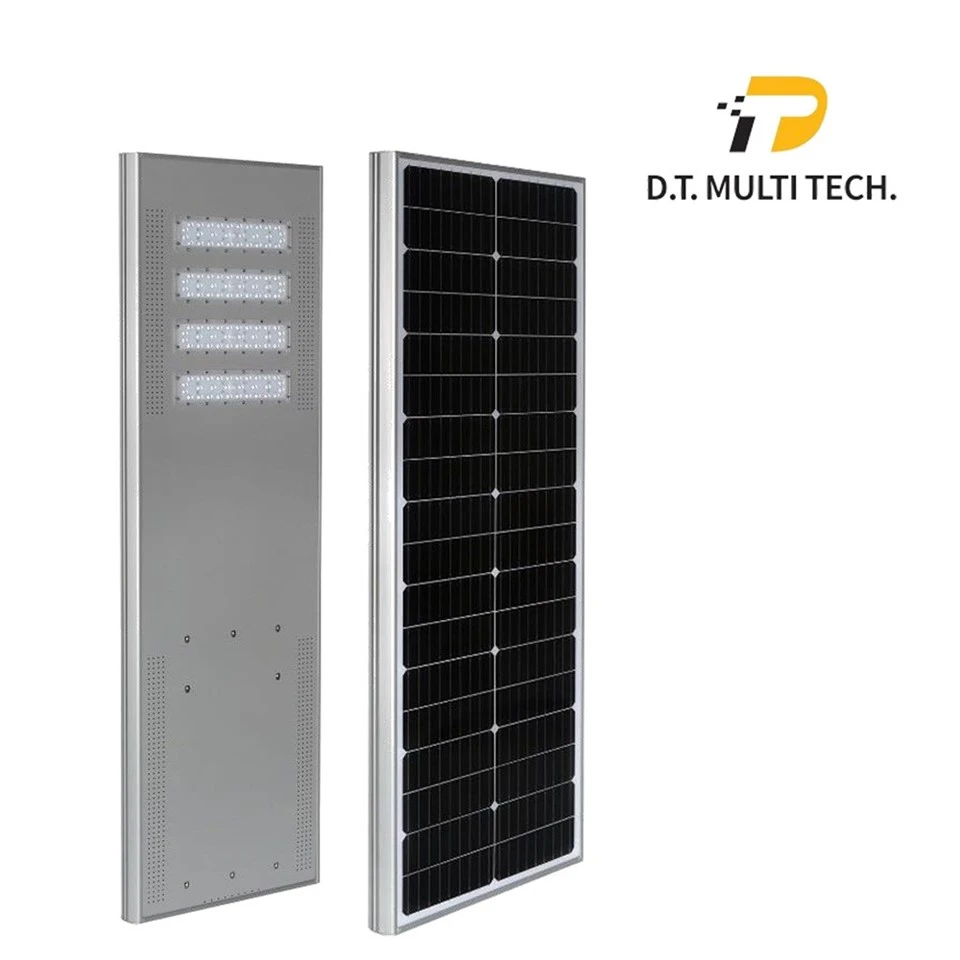

Designed for heavy-duty commercial, municipal, and roadway applications, this integrated 120W solar lighting system combines high-efficiency PV panels, an intelligent MPPT controller, a long-life LiFePO4 battery pack, and premium Philips Lumileds into a single durable housing. It provides a reliable off-grid lighting solution for highways, 4-lane roadways, city streets, and large public infrastructure without the expense of trenching or grid connections.
Reliable Energy Storage & Smart Power Management
The unit integrates a Grade-A 691.2Wh LiFePO4 battery pack equipped with an internal Micro-BMS to manage thermal regulation, over-charging, and deep discharges. Paired with a 99.9% tracking efficiency MPPT controller, the system dynamically adjusts energy intake and power consumption. This intelligent power management setup ensures the light maintains stable illumination even during 5 consecutive rainy or overcast days.
FEATURES & ADVANTAGES
TECHNICAL DATASHEET
| ITEMS | SPECIFICATIONS | |
| LED Light Source | Lamp Lumen (Max) | 10,000~12,000 LM |
| Nominal Power | 120 W | |
| LED Chips | 36LEDs*4 PHILIPS 3030 (LED Lumen Eff.: 195lm/W) | |
| Color Temperature | 5000K (2700~6500K Full Range Color Temperature Available) | |
| CRI /Life-span | CRI>70/ Lifespan>100,000 hours | |
| Beam Angle | 140*70° (Customized Beam Angles & IES Types Available) | |
| Solar Panel | Power | 18V/120W |
| Cell Type | High Efficiency Monocrystalline PV with Cell Eff. up to 22.8% | |
| Warranty | >90% in the 12 years, >80% in the 25 year | |
| Batteries | Capacity | 12.8V/54Ah (691.2 Wh) |
| Type | Grade A Lithium Iron Phosphate Batteries (LiFePO4) with Micro-BMS | |
| Life-span | 8+ years (3,000 circles @ 60% DoD) | |
| Controller | Type | MPPT / IP68 Rank/ Intelligent Power Management |
| Control | Microwave Radar Sensor (PIR or 10 sections timer as optional) | |
| Full Charge Time | By Solar | <6 hours (STC: 1000W/㎡, 25℃ ) |
| Discharge Time | Dim Mode | 60 hours |
| Bright Mode | 12 hours | |
| Working Temp. | -30°C~+80°C | |
| Mounting Height/Pole Top Diameters | Mounting Height: 9~11M/ Pole Diameters 40~80 mm | |
| Distance Between Poles | 35~40M | |
| Housing Materials | Aluminum Alloy+Galvanized Steel | |
| Certificates | CE / ROHS / IP67/ IK10 /TÜV-SUD: ISO9001/ ISO14001/ISO45001 | |
| Warranty | 10 years for Solar PV, 3 years for complete light | |
Versatile Application Scenarios
- Highways & Expressways: Engineered to meet strict illumination standards for high-speed traffic zones, delivering uniform light distribution along main highway arteries and multi-lane expressways.
- Municipal Streets & Urban Roadways: Ideal for city avenues, secondary access roads, and suburban connectors. The integrated off-grid design eliminates the need for underground cabling or trenching work.
- Public Infrastructure & Squares: Provides wide-coverage illumination for civic squares, city plazas, and public venues.
- Commercial Parking Lots & Industrial Parks: Delivers reliable perimeter and lot lighting for logistics hubs, manufacturing compounds, and retail centers.
- Parks & Theme Parks: Maintains consistent light levels across recreational areas, walking paths, and theme park grounds without disrupting surrounding landscapes.
FAQ
Q: How many continuous rainy or cloudy days can this 120W solar street light operate without sun exposure?
A: Our ISSL-BRZ-120W system features a 691.2Wh Grade-A LiFePO4 battery paired with an intelligent MPPT controller. Under standard power-saving or motion-sensing modes, it provides 5+ days of continuous autonomy during cloudy or rainy weather.
Q: Can you provide Dialux simulation reports and IES files for municipal project bidding?
A: Yes. We provide free Dialux optical simulations tailored to your project's road width, pole height, and spacing requirements.
Q: What is the expected lifespan of the LiFePO4 battery?
A: The system integrates Grade-A LiFePO4 cells rated for 3,000+ deep cycles at 60% DoD, providing an operational lifespan of 8+ years.
Q: What mounting bracket options are included or available?
A: We supply three mounting bracket types to match various pole specifications: Arm Brackets, Tube Brackets for Arm Mounting, and Tube Brackets for Pole Top Mounting.
Q: What international quality and safety certifications does this product hold?
A: The ISSL-BRZ-120W carries CE, ROHS, IP67, and IK10 certifications. Furthermore, our manufacturing facility is certified under TÜV-SÜD ISO9001, ISO14001, and ISO45001 quality management standards.
