Product Overview

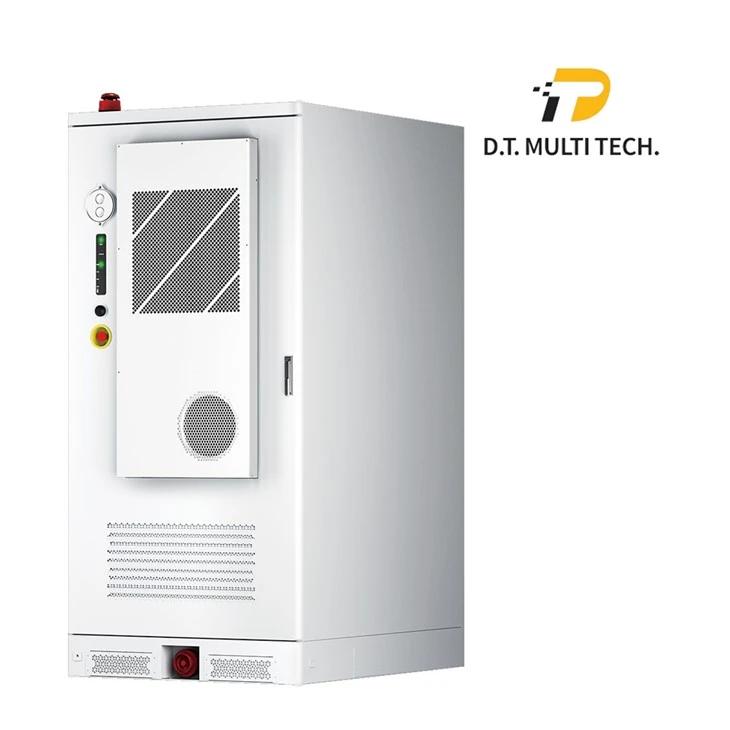

The 265kWh Solar Battery Storage Cabinet is a high-capacity DC energy storage solution designed for commercial and industrial (C&I) solar and energy storage projects. Built with safe and long-life LiFePO₄ battery technology, this outdoor-rated energy storage cabinet is ideal for applications such as solar PV + storage, peak shaving, microgrids, and backup power systems.
With a modular DC architecture, high energy density, and robust environmental protection, this solar battery storage cabinet enables system integrators and EPC contractors to deploy reliable, scalable, and cost-effective energy storage solutions in both grid-connected and off-grid environments.
Applications
The Solar Battery Storage Cabinet is designed to meet the energy demands of commercial and industrial users seeking reliable, flexible, and cost-effective energy storage solutions. It is widely deployed in solar PV + energy storage systems to maximize self-consumption and reduce reliance on the grid, as well as in peak shaving and load shifting projects to lower electricity costs during high-demand periods.
The system is also well suited for industrial parks, manufacturing facilities, and commercial buildings, where stable power supply and energy management are critical. In addition, it can be integrated into microgrid and off-grid power systems, providing dependable backup power for critical infrastructure such as data centers, logistics hubs, and public facilities. With its outdoor-rated design and scalable DC architecture, the Solar Battery Storage Cabinet supports a broad range of project scenarios across diverse operating environments.
| Model | BESS-265 |
| Battery Parameters | |
| Battery Pack (1P24S) | |
| Battery Type | LiFePO4 |
| Rated Voltage | 76.8V |
| Nominal Capacity | 314Ah |
| Pack Energy | 24.115kWh |
| Weight | 158kg |
| Battery System (1P264S) | |
| Configuration | 1P264S |
| Rated Battery Voltage | 844.8V |
| Battery Voltage Range | 739.2~950.4V |
| Nominal Energy | 265.26kWh |
| Usable Energy (kWh@90%DOD) | 238.74kWh |
| Max Charge/DischargeCurrent (A) | 157A |
| Scalability | Up to 10 units in parallel |
| Cycle Life[3] | ≥8000 Cycles (@25℃, 0.5C, 90%DOD, 70%EOL) |
| Warranty Period[4] | 5+5 years |
| Basic Parameters | |
| Dimension (W*D*H) | 1095*1520*2395mm |
| Weight | 2730kg |
| Operating Temperature Range (℃) | -30℃~55℃ (>45℃ derating) |
| Relative Humidity | 5%~90% (non-condensing) |
| IP Rating | IP54 |
| Anti-corrosion Grade | C4 (Optional C5) |
| Noise | 75dB (<1m distance) |
| Altitude | ≤2000m |
| Cooling Method | Intelligent Air Cooling |
| Fire protection | Aerosol / water fire protection (optional) |
| Communication Interface | CAN;RS485 |
| Certifications | UN38.3, MSDS, IEC62619 (CB), IEC63056, CE-EMC |
Long Cycle Life
Cycle life is one of the most critical factors for commercial and industrial energy storage projects, as it directly impacts system reliability and long-term return on investment. This solar battery storage cabinet is built with high-quality LiFePO₄ battery cells, delivering a cycle life of ≥8000 cycles at 25°C, 0.5C, and 90% depth of discharge, while maintaining 70% end-of-life capacity.
Compared with conventional battery chemistries, LiFePO₄ offers superior thermal stability and slower capacity degradation, making it particularly suitable for high-frequency charge and discharge applications such as peak shaving and solar energy storage. The long cycle life significantly reduces battery replacement frequency over the project lifetime, helping system owners and EPC contractors achieve lower operating costs and more predictable performance across years of continuous operation.
FAQ
Q: What is the usable energy of the system?
A: The nominal energy of the cabinet is 265.26kWh, with a usable energy of 238.74kWh at 90% depth of discharge (DOD). This balance ensures both high energy utilization and long battery life.
Q: What cooling method is used, and how reliable is it?
A: The system adopts intelligent air cooling, which balances efficiency, reliability, and maintenance cost. It is optimized for outdoor energy storage applications and supports stable operation across a wide temperature range.
Q: What certifications does the product have?
A: The system complies with key international standards, including UN38.3, MSDS, IEC62619 (CB), IEC63056, and CE-EMC, supporting deployment in global commercial and industrial projects.
Q: How is the product delivered and installed?
A: The solar battery storage cabinet is factory-assembled and tested before delivery. It is designed for outdoor installation and fast on-site commissioning, reducing installation time and labor costs.
Q: Can OEM or ODM services be provided?
A: Yes. OEM and ODM services are available for large-scale projects, including customized branding, communication protocols, and system configurations based on customer requirements.
