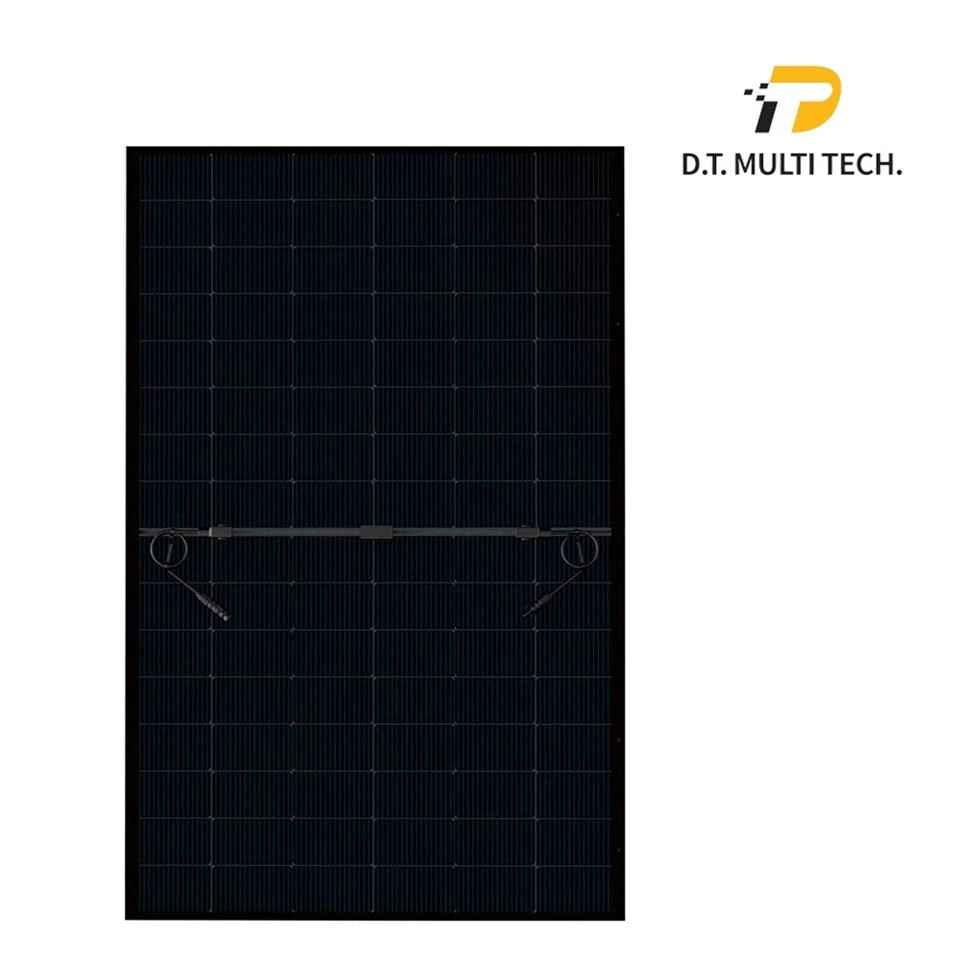

450W-470W TOPCon Bifacial Double-Glass Module
Upgrade your solar installations with the next generation of high-efficiency photovolatic modules. Designed specifically for commercial rooftop installers, regional solar distributors, and EPC contractors, our N-Type solar panel integrates advanced TOPCon cell architecture with a sleek all-black double-glass build. Delivering up to 23.53% module efficiency and an impressive 80% bifaciality rate, this 96-cell monocrystalline module ensures maximum energy density, exceptional aesthetics, and superior lifetime ROI.
Globally Certified Excellence
Products Description
- Excellent temperature coefficient (Pmax): -0.290%/°C
- Excellent low-light performance: extended power generation up to 1H or more in the morning and evening
- Has lower LID/LeTID attenuation
- With a bifacial rate of 80% ± 5%, the bifacial power gain significantly reduces the LCOE as the backside is exposed to more light
Long-Term Reliability: Dual 2.0mm tempered glass construction provides Class A fire rating, IP68 junction box protection, and heavy mechanical load capacity (5400Pa snow / 2400Pa wind load). Backed by a 15-year product warranty and a 30-year linear performance guarantee ensuring at least 87.4% output at Year 30.
SPECIFICATION (STC)
| ODA450-24V-MHDBRz | ODA455-24V-MHDBRz | ODA460-24V-MHDBRz | ODA465-24V-MHDBRz | ODA470-24V-MHDBRz | |
| Rated Peak Power-Pmax(Wp) | 450 | 455 | 460 | 465 | 470 |
| Maximum Power Voltage-Vmp(V) | 29.38 | 29.43 | 29.47 | 29.51 | 29.55 |
| Maximum Power Current-Imp(A) | 15.31 | 15.46 | 15.6 | 15.76 | 15.91 |
| Open Circuit Voltage-Voc(V) | 34.57±3% | 34.62±3% | 34.67±3% | 34.72±3% | 34.77±3% |
| Short Circuit Current-Isc(A) | 16.27±3% | 16.43±3% | 16.58±3% | 16.74±3% | 16.90±3% |
| Module Efficiency(%) | 22.52 | 22.77 | 23.01 | 23.27 | 23.53 |
MECHANICAL CHARACTERISTICS
| Cell Type (mm) | 182*105 N-Type Mono |
| No. Of Cells | 96(12*8) |
| Module Dimensions(mm) | 1762*1134*30 |
| Weight | 24.70 kg |
| Bifacial Glass Front Glass(mm) | 2.0mm AR Coating Tempered Glass |
| Bifacial Glass Back Glass(mm) | 2.0mm Glazed Glass |
| Frame | Anodized Aluminium Alloy(Black) |
| Junction Box | IP68,1500VDC, 3 Schottky Bypass Diodes |
| Cables | 4.0mm²,Positive(+)300mm,Negative(-)300mm, Or Customized Length |
| Connector | IP68 |
| Snow Load/Wind Load | 5400Pa/2400Pa |
| Class Of Safety Protection | Class II |
| IEC Component Fire Rating | Class A |
| OPERATING PARAMETER | |
| Maximum System Voltage | 1500V |
| Operational Temp | -40~+85 °C |
| Max Series Fuse Rating | 28A |
| Nominal Module Operating Temp (NMOT) | 45±2°C |
| TEMP COEFFICIENT | |
| Temp Coefficient Of Pmax | -0.290%/°C |
| Temp Coefficient Of Voc | -0.250%/°C |
| Temp Coefficient Of Isc | +0.045%/°C |
| PACKING STANDARD 40ft(HQ) | |
| Number Of Modules Per Pallet | 37 |
| Number Of Pallets Per Container | 26 |
| Number Of Modules Per Container | 962 |

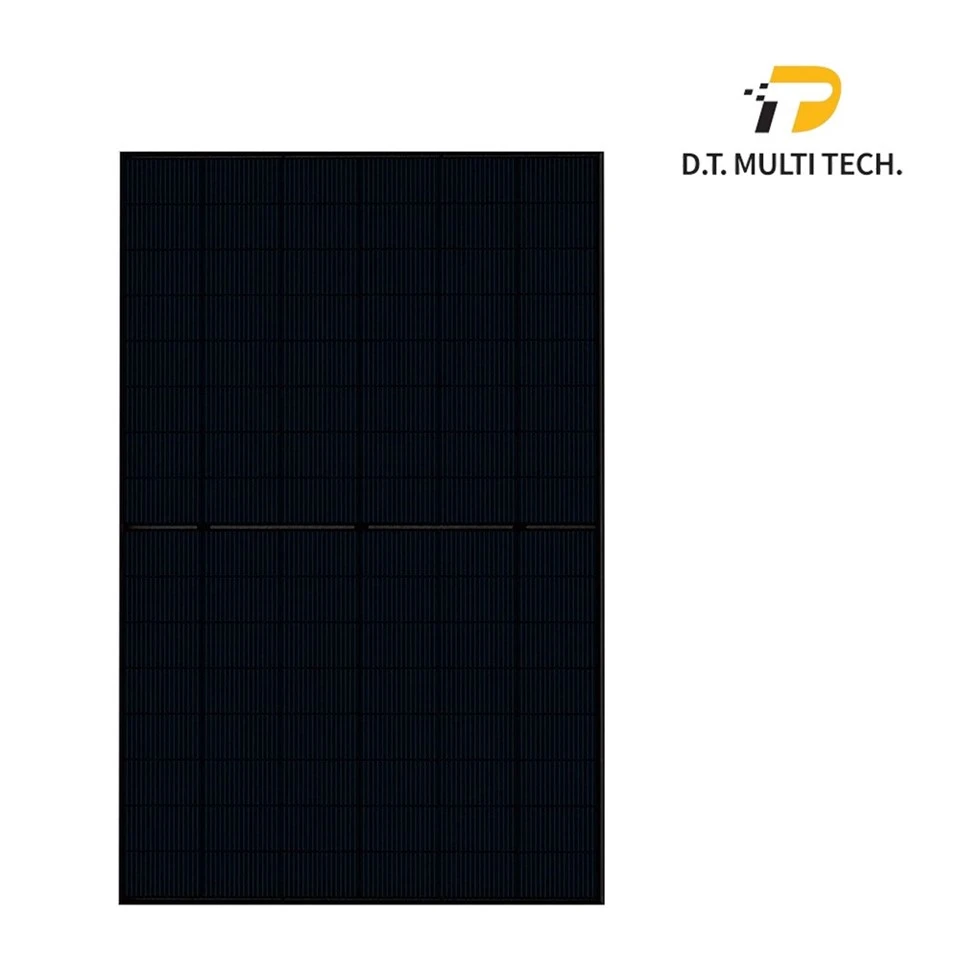

All-Black Premium Aesthetics
When it comes to rooftop installations, technical performance is only half the story-visual integration matters just as much to modern property owners. Our N-Type Solar Panel bridges this gap by pairing advanced TOPCon cell technology with a refined, all-black profile.
Built with an anodized black aluminum frame and dual dark tempered glass layers, the module delivers a clean, uniform finish that blends naturally into high-end residential architectures and commercial roofs without looking like an industrial afterthought. Beyond aesthetic appeal, the double-glass construction acts as a robust barrier against environmental wear while maintaining efficient heat dissipation, ensuring your installations deliver long-term power generation without compromising the property's curb appeal.
FAQ
Q: What are the exact dimensions, weight, and pallet packing details for shipping logistics?
A: Each module measures 1762*1134*30mm and weighs 24.70 kg. They are packed 37 pieces per pallet, and a standard 40ft High Cube container fits 26 pallets, totaling 962 modules per container.
Q: How does the double-glass structure improve module durability?
A: The dual 2.0mm tempered glass configuration provides superior resistance to micro-cracks, PID (Potential Induced Degradation), moisture ingress, salt-mist, and ammonia corrosion. It also achieves a Class A fire rating and handles high snow loads (5400 Pa) and wind loads (2400 Pa).
Q: What is the maximum system voltage and maximum series fuse rating for system string sizing?
A: The maximum system voltage is 1500V DC, which allows for longer string designs to reduce Balance of System (BOS) costs. The maximum series fuse rating is 28A.
Q: How does this panel perform under low-light conditions, such as early morning, late afternoon, or cloudy days?
A: N-Type TOPCon cells feature enhanced low-light spectral response, extending daily power generation by up to one hour or more during morning and evening periods compared to standard panels.
Q: Do you offer technical support for system design and compatibility with string inverters?
A: Yes. Our engineering team provides free string-matching analysis, CAD layout assistance, and compatibility checks for mainstream inverters (e.g., Growatt, Huawei, Sungrow).
