Products Description

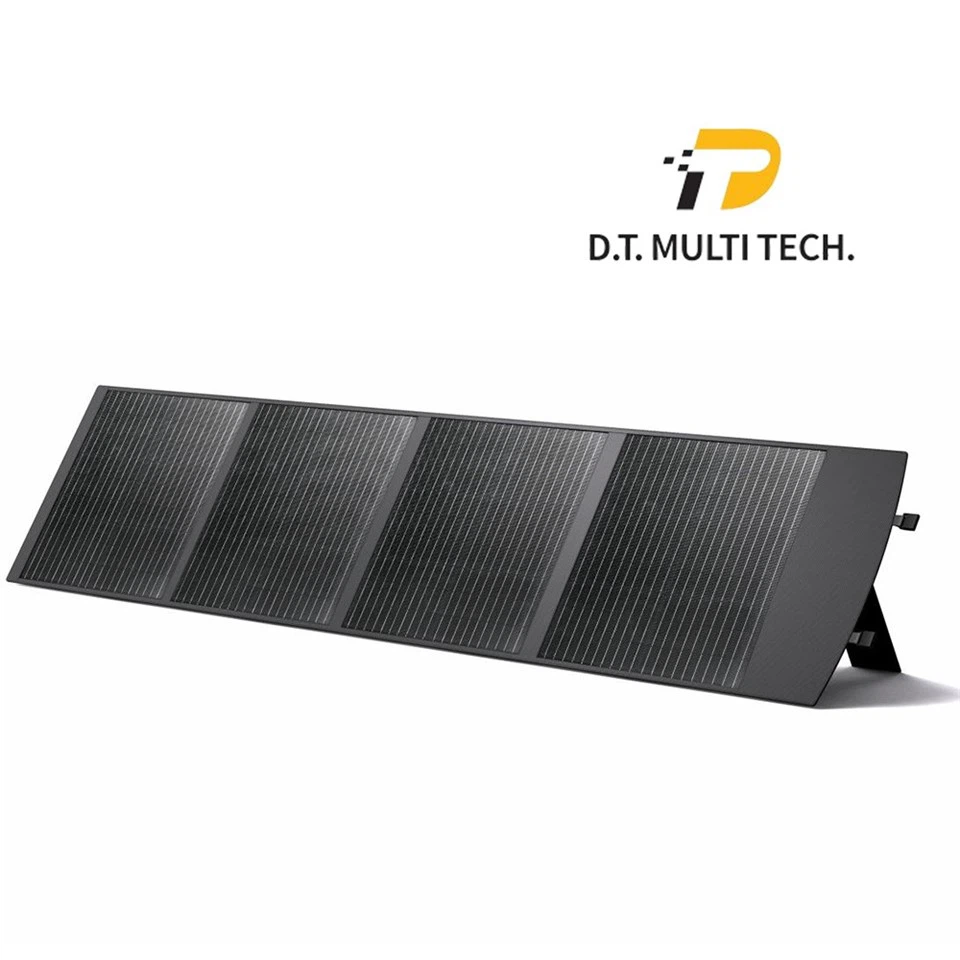

Experience the pinnacle of off-grid energy with the PC4120, a high-efficiency 120W foldable portable solar panel engineered for the demanding needs of outdoor professionals and energy solution distributors. Designed to bridge the gap between extreme portability and robust industrial performance, this monocrystalline foldable solar panel is the ultimate companion for portable power stations and off-grid professional equipment.
Built for the Elements: IP67 Waterproof Rating
Unlike standard consumer-grade chargers, the PC4120 is built with a professional IP67 waterproof level (except for the connecting ports), ensuring reliable power generation even in unpredictable weather or marine environments. Whether you are managing a remote worksite or navigating coastal areas, this IP67 waterproof foldable solar panel provides the durability required for long-term outdoor exposure.
Specification
| Product Name | DT-4120 |
| Peak Power | 120W |
| Cell Type | Monocrystalline*4pcs |
| DC Output | 22V/5.45A Max |
| USB-A Output | 5V3A/9V2A/12V1.5A |
| USB-C Output | 5V3A/9V3A/12V3A/15V3A/20V3A |
| Waterproof Level | IP67(Except connecting port) |
| Operating Temperature | -10~65°C |

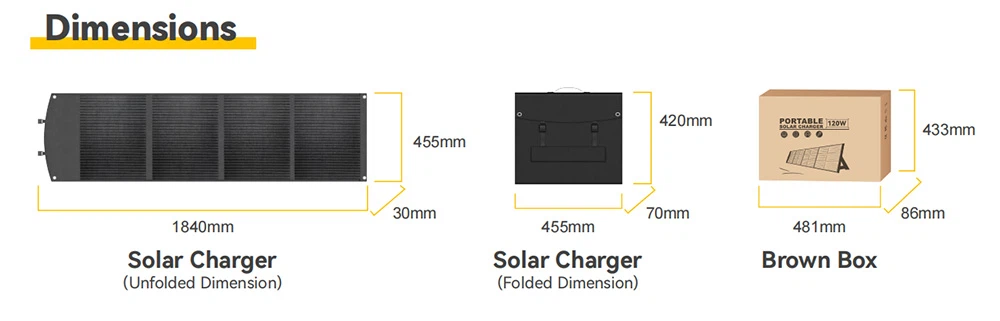

| Folded Dimension | 420 x 455 x 70mm |
| Unfolded Dimension | 1840 x 455 x 30mm |
| Weight (Net / Gross) | 3.96kg/4.78kg |
High-Efficiency Power Conversion
At the heart of the PC4120 are four premium monocrystalline cells, optimized to deliver a 120W peak power output. This configuration ensures a high conversion rate, allowing you to harvest more energy per square inch, even on overcast days. For wholesale buyers looking for consistent performance, the 22V DC output (5.45A Max) makes this unit an ideal solar charger for portable power stations across various global brands.
Versatile Fast-Charging Interface
To meet modern connectivity demands, we have integrated a smart-chip charging hub that supports multiple outputs simultaneously:
- USB-C PD 60W Output: High-speed charging for laptops, tablets, and smartphones (5V/9V/12V/15V/20V at 3A).
- USB-A Fast Charge: Dedicated ports for mobile devices and peripherals (up to 12V/1.5A).
- High-Power DC Output: A specialized 22V/5.45A max port designed specifically for high-capacity battery storage systems.
FAQ
Q: How does the IP67 waterproof rating apply to the daily use of this panel?
A: The solar panels themselves are fully rated IP67, meaning they are protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. Note that the junction box ports should be kept dry during operation.
Q: Can the USB-C port truly power a laptop directly without an intermediary power station?
A: Yes. The USB-C port supports PD (Power Delivery) 60W protocol with voltages up to 20V/3A, which is compatible with most modern laptops like MacBooks and ThinkPads.
Q: Is the 22V DC output compatible with 12V battery systems or portable power stations?
A: The 22V/5.45A DC output is specifically designed to efficiently charge portable power stations. For direct 12V battery charging, we recommend using a solar charge controller to regulate the voltage.
Q: How durable is the outer fabric/lamination against UV degradation over time?
A: We use ETFE or high-quality PET lamination (depending on your preference) which is UV-resistant and anti-aging, ensuring the panel's surface remains clear and efficient for years of outdoor use.
Q: What certifications do you provide for the European and North American markets?
A: Our products are manufactured to meet CE, FCC, and RoHS standards, ensuring smooth customs clearance and compliance for your local retail or distribution channels.
