Solar panel mounting brackets for tile roofs connect PV mounting rails to a suitable roof structure. This product uses aluminum-alloy and stainless-steel components for pitched-roof installations. Select the fixing arrangement to suit the tile profile and supporting members.
Tile Roof Solar Brackets: Product Scope
The listed angle range is 0–45°. Confirm the applicable roof pitch and attachment details for the selected assembly. Clay and concrete tiles, including flat and curved profiles, may require different hooks and clearances. Before specifying hardware, check whether the roof covering is sound and whether the underlying structure can accept the intended fixing pattern.
Key Specifications
| Item | Specification / Selection Requirement |
|---|---|
| Application | Pitched tile roofs with suitable structural attachment points |
| Materials | Aluminum alloy and stainless steel; confirm grades |
| Finish | Natural finish; confirm surface treatment |
| Listed angle | 0–45°; subject to the selected assembly drawing |
| Roof fixing | Hook or attachment, structural fastener and roof interface matched to the project |
| Rails and clamps | Check rail section, module frame and connection hardware |
| Dimensions / torque | Confirm in bracket drawing and installation instructions |
| Wind / snow design | Depends on attachment spacing, roof structure and site loads |

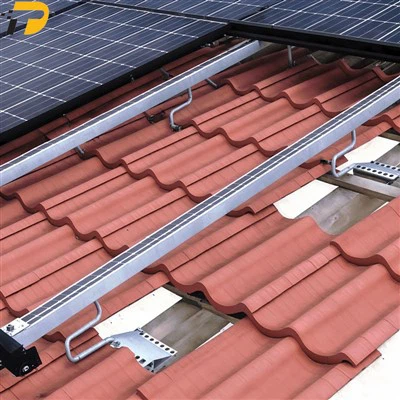

How the Mounting Assembly Transfers Load
In a typical hook-and-rail design, loads travel from the PV module through clamps and rails to roof attachments secured to load-bearing members. Tiles are weather coverings, not the structural anchor. The load path must be checked for wind uplift as well as downward gravity and snow loads. Tile hooks also need enough clearance to avoid unintended pressure on the roof covering.
Use approved attachment drawings to confirm clearances, load transfer and waterproofing at the tile interface.
Compatibility and RFQ Checklist
- Tile type, profile, overlap and roof pitch
- Rafter or supporting member type and spacing
- Module dimensions, quantity and layout
- Rail, clamp and structural fastener requirements
- Wind, snow, corrosion and waterproofing conditions
- Project location and expected delivery date
For ordering, request a bill of materials, component drawings, installation instructions, material grades, applicable load documentation and packing details. Confirm whether rails, clamps and fasteners are included. If the project uses an existing rail system, provide the section drawing and clamp dimensions so the mechanical connection can be checked before ordering.

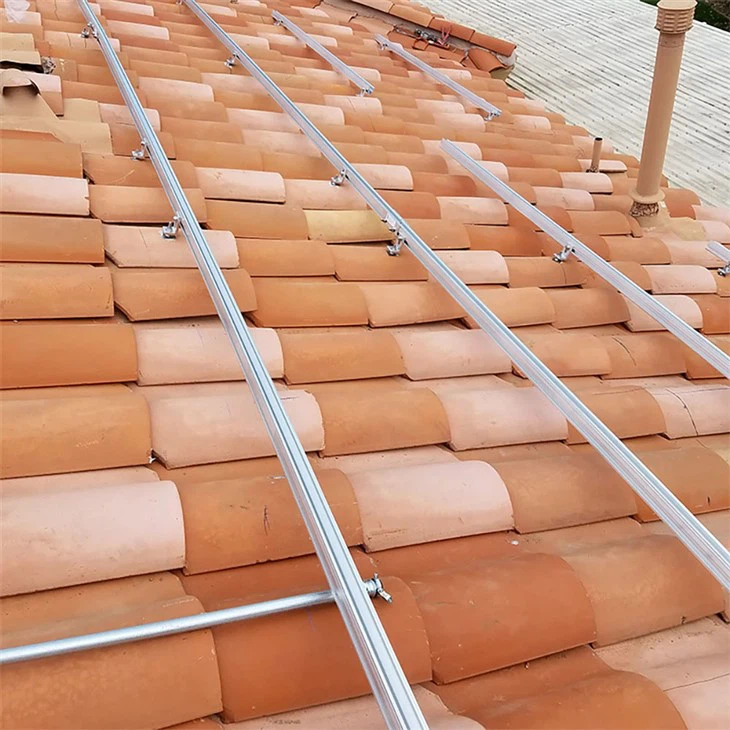

Related Tile Roof Mounting Options
Compare roof hooks and rail assemblies by tile clearance, structural connection and installation method.
Tile Roof Solar Mounting FAQ
-
Can these brackets fit every tile roof?
No. Confirm the tile profile, structural fixing points, hook clearance and site requirements before choosing an attachment.
Close answer ↑ -
Do the brackets attach directly to roof tiles?
In a typical hook-and-rail system, loads transfer to approved structural members beneath the tiles. Tiles provide weather covering, not structural anchorage.
Close answer ↑ -
Is tile cutting or drilling always unnecessary?
No. Tile adjustments, underlayment work or flashing may be required. Follow the approved roof attachment and waterproofing detail.
Close answer ↑ -
What does the listed 0–45° angle mean?
It is the listed angle range. Confirm the approved roof pitch and assembly drawing; it does not establish adjustable module tilt.
Close answer ↑ -
What wind and snow loads can the system support?
Capacity depends on attachment spacing, roof structure, array layout and local loads. Request configuration-specific engineering documentation.
Close answer ↑ -
Are rails, clamps and fasteners included?
Package contents depend on the order. Check the bill of materials for hooks, rails, clamps, fixings and any required accessories.
Close answer ↑ -
What details are needed for a quotation?
Send roof photos or drawings, tile type, roof pitch, structural layout, module dimensions and quantity, project location and required delivery date.
Close answer ↑
Request a Tile Roof Mounting Quotation
Share your roof drawings, tile type, project location, module layout and quantities. DTSOLARPOWER can review suitable mounting components and prepare a bill-of-materials-based quotation.
