The RSK Series All in One Solar Street Light is engineered for modern municipal infrastructure, commercial property perimeters, industrial parks, and rural road development projects. By integrating high-efficiency monocrystalline solar panels, Grade-A LiFePO4 battery modules, intelligent power controllers, and professional optics into a single corrosion-resistant aluminum housing, this series provides a complete, low-maintenance off-grid illumination solution built for long-term operational stability.
Core Technologies
Patented appearance
Integrated design of solar panel, microcomputer controller, lithium battery and high-efficiency LED light source
01
Modular design
Modular design of battery and LED chip, transportation, installation and maintenance are more economical and simple
02
Proprietary control system
Sensor street lamp with Solar controller can adjust different working modes freely. With more functions, the stability is more stronger
03
Intelligent high-efficiency lamp chips
140 pcs of high efficiency LED chips, optimized brightness, the whole lighting effeciency is greater than 160lm/w
04
Intelligent charge and discharge management
Double protection of charging and discharging by software and hardware, and intelligent equalization technology, cycle charging and discharging more than 2000 times
05
Professional light distribution design
Commercial solar street light equipped with patented lens to make the irradiation area more uniform
06
Indicator lights of battery capacity
Indicator lights of battery capacity display the power of the lamp obviously, which is convenient to observe the charging and discharging of the lamp
07
Rotating angle design
The illumination area and angle of light can be adjusted reasonably according to the width of the road
08
Trusted Solar Street Lamp Manufacturer
Truly Wireless Architecture: Eliminates underground conduit trenching, distribution boxes, and grid wiring, dramatically lowering initial deployment costs.
Modular Detachable Lamp Head: The detachable housing design allows rapid on-site servicing and quick component replacements without taking down the complete fixture assembly.
Typhoon-Resistant Structural Rating: Housed in high-durability die-cast aluminum with IP65 ingress protection, the fixture and its dedicated Q235 hot-dip galvanized mounting pole are engineered to withstand Grade 12 typhoon winds (up to 235 MPa yield strength) and harsh coastal environment corrosion.
Extended All-Weather Energy Storage
Featuring Grade-A LiFePO4 battery technology paired with the 4th-generation Intelligent Power Control system, the internal energy storage unit optimizes charging and discharging efficiency. The system continuously monitors battery capacity alongside recent weather trends, dynamically adjusting output power to guarantee up to 5 consecutive days of uninterrupted illumination, even during prolonged rainy or overcast periods.
Parameter
| Type | RSK-40 | RSK-60 | RSK-80 | RSK-120 |
| Lamp head | ||||
| LED chip | 140pcs | 240pcs | ||
| Luminous flux | 4000lm | 6000lm | 10000lm | 15000lm |
| Beam angle | 150*70° | |||
| Lifespan | 50000hrs | |||
| IP Rating | IP65 | |||
| Working temperature | -20°C~60°C (Charge above 0°C) | |||
| Color temperature | 3000-7500K | |||
| CRI | Ra≥70 | |||
| SOLAR PANEL | ||||
| Power | 100W | 150W | 200W | 300W |
| Voltage | 6V | 18V | ||
| Solar cell efficiency | 19%-22% | |||
| Material | Monocrystalline silicon | |||
| BATTERY | ||||
| Capacity | 144WH/45AH | 240WH/75AH | 384WH/120AH | 640WH/200AH |
| Lighting time(full charged) | 5-7 rainy days | |||
| Lithium battery | LiFePO4 | |||
| INSTALLATION | ||||
| Top diameter of pole | 60mm | 76mm | ||

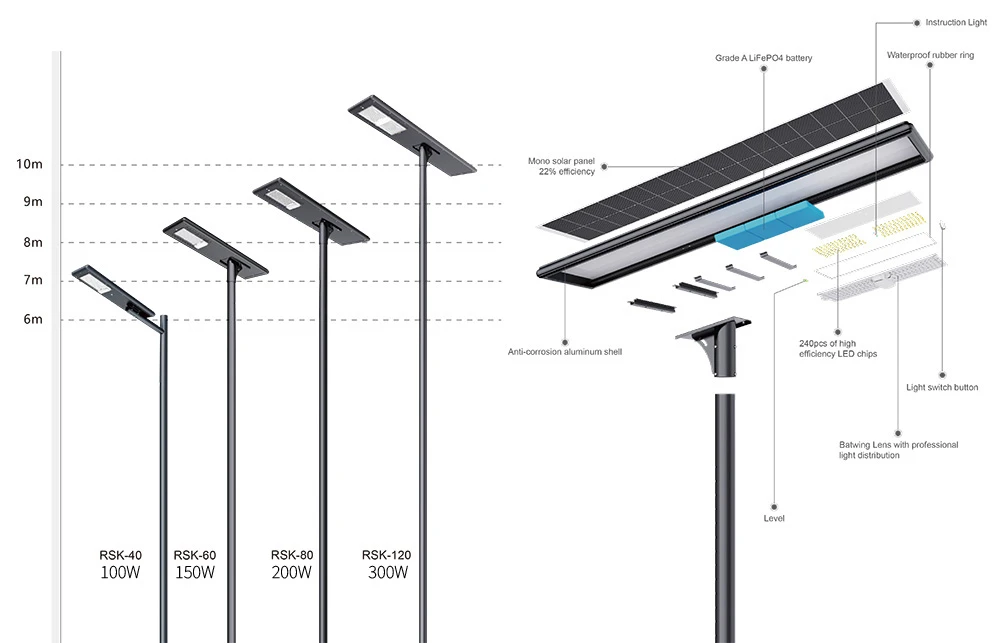

| Mounting height | 4-6M | 6-7M | 6-8M | 8-10M |
| Installation spacing | 20-40M | |||
Products Description
Zero Electricity Bills:
The system operates entirely independent of the electrical grid. Equipped with high-conversion monocrystalline solar cells (up to 22% efficiency), this off-grid capability eliminates recurring utility bills and ongoing power grid connection charges.
Wireless Installation:
The All in One solar street light features a completely wireless, self-contained architecture. All core components-solar panel, battery, controller, and light source-are enclosed in a single modular unit, reducing site labor, civil works, and environmental disruption.
Rapid Pole-Top Mounting:
Installation requires minimal site preparation. The pre-assembled fixture mounts directly onto existing or new lighting poles. An installation crew can secure a single fixture in 5 to 10 minutes using standard mounting hardware, cutting deployment timelines on large-scale infrastructure projects.
Flexible Lighting Modes:
Controlled via a dedicated mobile app, the system features multiple selectable working modes (such as T, L, U, M, and DEMO test modes). This allows operators to easily customize lighting profiles and adaptive power settings to meet diverse site conditions and energy-saving requirements.
3-Year Commercial Warranty:
The Integrated Solar Street Light is constructed with an anti-corrosion die-cast aluminum alloy body and sealed with IP65-rated silicone gaskets. Each unit is backed by a full 3-year commercial manufacturer warranty covering all electronic, battery, and LED components.

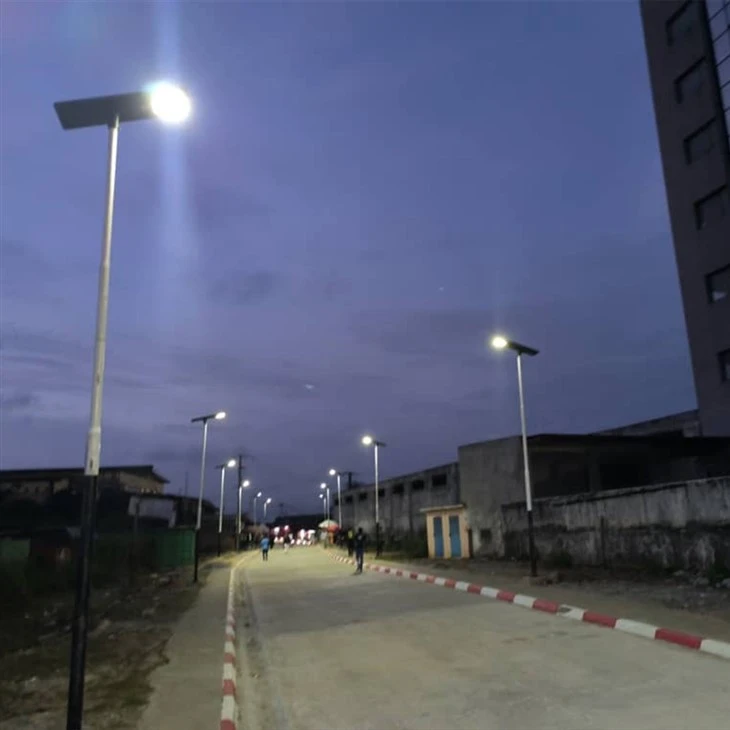

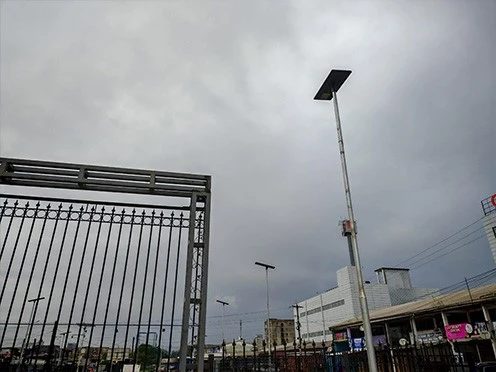

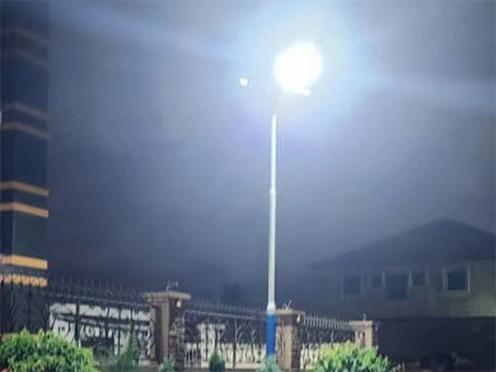

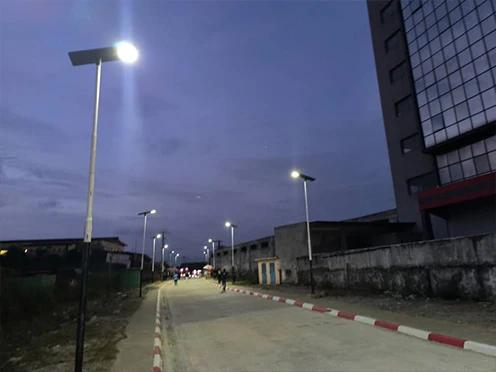

Versatile Project Applications
Product Details
Streetlight pole
Pipe Material: Q235 Structural Steel
Yield Strength: 235 MPa
Anti-Corrosion Process: Hot-Dip Galvanizing
Wind Resistance Rating: Grade 12
FAQ
Q: What type of solar panel and battery technology does the RSK Series use?
A: The RSK Series features high-efficiency monocrystalline solar panels with up to 22% conversion efficiency and Grade-A LiFePO4 (Lithium Iron Phosphate) battery cells.
Q: What is the total luminous efficacy and optics distribution of these fixtures?
A: The RSK Series utilizes high-efficiency LED chips delivering a total system light output of ≥160 lm/W. It features a specialized batwing optical lens with a 150°*70° beam angle, designed to project uniform light across wide road surfaces.
Q: Can we customize a specific dimming schedule for our municipal project requirements?
A: Absolutely. Beyond the standard factory modes, the intelligent controller can be customized via the mobile app to suit specific local municipal standards, adjusting output levels according to time windows or motion sensor triggers.
Q: Is the mounting bracket angle adjustable?
A: Yes, the sleeve bracket features a rotating angle design, allowing installers to adjust the tilt angle relative to the road width to optimize both solar absorption and ground light coverage.
Q: What certification packages do you provide for tender submissions and customs clearance?
A: We supply complete compliance documentation, including CE, RoHS, IP65 waterproof testing, IEC reports, and UN38.3 + MSDS safety certification packages for air and sea lithium battery transport.
