The Growatt MAX 250KTL3-X HV is a 250 kW three-phase string inverter for utility-scale and industrial solar plants. It is designed for 1500 V DC PV arrays and an 800 V AC connection. DTSOLARPOWER handles supply enquiries for this Growatt-manufactured model.

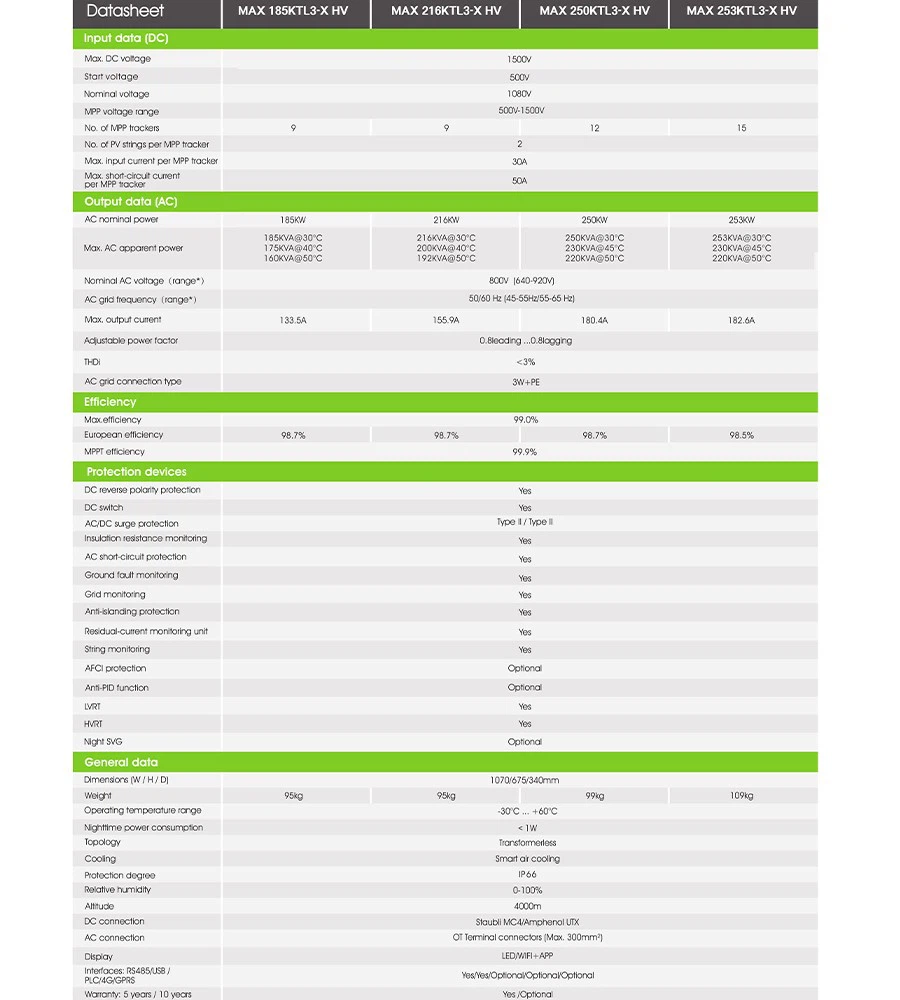

250 kW On-Grid Inverter Specifications
These specifications are for the MAX 250KTL3-X HV. Regional availability and the final supply package are confirmed in the quotation.
| Specification | MAX 250KTL3-X HV |
|---|---|
| Nominal AC output | 250 kW; 250 kVA maximum at 30°C |
| Rated AC voltage | 800 V three-phase; specified range 640–920 V |
| AC connection / frequency | 3W + PE; 50/60 Hz |
| Maximum DC voltage | 1500 V |
| MPPT range / start voltage | 500–1500 V / 500 V |
| MPPT / PV inputs | 12 MPPTs; 2 strings per MPPT |
| Input per MPPT | 30 A maximum; 50 A maximum short-circuit current |
| Grid power quality | Power factor 0.8 leading to 0.8 lagging; THDi <3% |
| Maximum / European efficiency | 99.0% / 98.5% |
| Protection / cooling | IP66; smart air cooling; Type II DC and AC SPD |
| Dimensions / weight | 1070 × 675 × 340 mm (W × H × D); 99 kg |
AC apparent power varies with operating temperature and regional grid requirements.
Grid Functions and Operating Limits
The MAX 250KTL3-X HV includes anti-islanding, insulation and residual-current monitoring, and LVRT/HVRT functions. AFCI, anti-PID and nighttime SVG are optional. The specified operating range is −30°C to +60°C, with output derating at elevated temperatures.
Reactive power and grid-protection settings must suit the local utility requirements. As a grid-tied PV inverter, this model does not provide independent battery backup or off-grid power.
PV-to-Grid System Architecture
PV strings feed 12 MPPT channels and the DC/AC conversion stage before reaching the site AC collection system. Transformers, switchgear and grid protection are designed for the project.
Applications and Project Requirements
Utility-Scale PV
Distribute PV strings across multiple trackers in ground-mounted arrays.
Industrial Solar Plants
Designed for facilities with a suitable 800 V AC collection system.
Large Commercial Rooftops
Plan PV string grouping, equipment access and AC infrastructure.
- DC string Voc, Imp, Isc and module quantity
- 800 V AC collection and transformer arrangement
- Applicable grid code and utility approval
- Ambient conditions, site access and monitoring
Documentation and Project Supply
For a supply quotation, provide the full model, quantity, destination, monitoring accessories and delivery schedule. The offer should identify packing, warranty terms and available documents.
Electrical design should follow Growatt's installation manual and local grid requirements. Select the grid-code and certificate files applicable to the destination market.
Compare Related On-Grid Inverters
| Alternative | When to Consider It |
|---|---|
| 125 kW On-Grid Inverter | Lower inverter capacity for smaller PV blocks. |
| 150 kW On-Grid Inverter | Intermediate capacity; compare AC voltage and MPPT configuration. |
| 350 kW Commercial Inverter | Higher nominal power; different SOFAR model and electrical specifications. |
250 kW On-Grid Inverter FAQ
-
What documentation comes with the inverter?
The quotation should identify the Growatt model, supplied documents, monitoring accessories and warranty terms. Confirm the agreed package before ordering.
Close answer ↑ -
How many MPPTs does the MAX 250KTL3-X HV have?
It has 12 MPPT trackers, with two PV string inputs per MPPT.
Close answer ↑ -
Can this inverter connect directly to a 400 V AC system?
The rated AC output is 800 V. A 400 V network requires an engineered transformer and suitable grid protection.
Close answer ↑ -
What are the PV voltage and input-current limits?
Maximum DC voltage is 1500 V. Each MPPT accepts up to 30 A input current and 50 A short-circuit current.
Close answer ↑ -
Can this on-grid inverter supply backup power?
No. This is a grid-tied PV inverter; battery backup requires a different system design.
Close answer ↑ -
Are AFCI, nighttime SVG and PLC standard?
AFCI and nighttime SVG are optional; PLC depends on the communications package. Specify these options in the order.
Close answer ↑ -
How can I request a 250 kW inverter price?
Provide quantity, destination, AC grid voltage, required grid-code documents and any monitoring options.
Close answer ↑
Request a 250 kW Inverter Quotation
Share your PV project requirements to request pricing and availability for the Growatt MAX 250KTL3-X HV.
