Understanding Three-Phase Unbalance in C&I Energy Storage

May 18, 2026

Leave a message

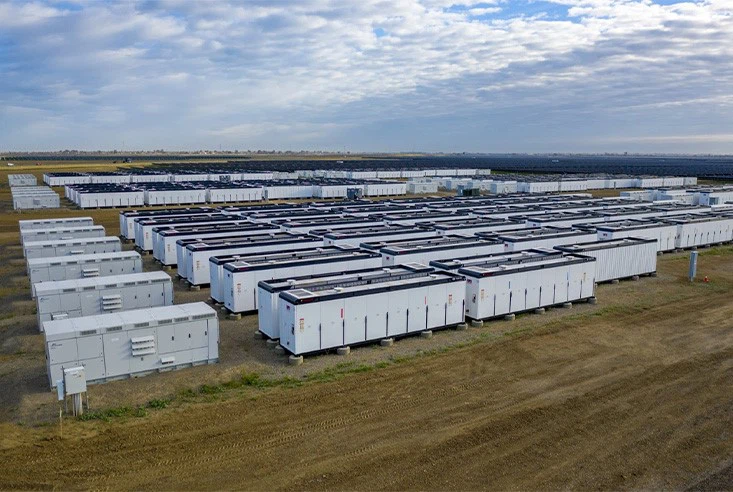

Energy Storage System
The Impact of Solar and Storage on Power Factor

Photovoltaic (PV) industry professionals are well aware of the relationship between solar integration and grid power factor. When a grid-tied PV system is installed, it offsets the local load by injecting active power. Because the facility draws less active power (P) from the utility grid while its reactive power (Q) demand remains unchanged, the overall grid power factor (PF) drops. To counter this, engineers must recalculate the reactive power deficit and increase the capacity of Static Var Generators (SVGs) or capacitor banks.



However, the introduction of Energy Storage Systems (ESS) adds a new layer of complexity. The primary question arises: Does the addition of an ESS require a readjustment of the existing reactive power compensation system? To answer this, we must analyze the system from both a long-term billing perspective and a real-time operational standpoint.



Theoretical Balance and Topology Layout

From a purely theoretical and regulatory perspective, an energy storage system operates on a cycle of equal charging and discharging. Since utility companies typically evaluate the power factor monthly based on total cumulative active and reactive energy, the net impact of the ESS on the monthly power factor is theoretically neutral.



To ensure accurate control under this logic, the sampling and grid-connection points for a low-voltage system must be strategically placed. The ideal topology layout should clearly define the spatial relationship between four critical nodes: the main utility metering point (the gateway), the ESS grid-connection point, the low-voltage reactive power compensation sampling point, and the PV grid-connection point. Properly positioning these sampling points ensures that the compensation controller can accurately distinguish between load fluctuations and storage operations.



Real-Time Dynamic Shifts and Mid-Voltage Solutions

During the charging and discharging cycles, rapid shifts in active power cause transient power factor fluctuations between the ESS connection point and the main utility gateway. During discharge, local active power from the grid decreases while reactive power stays constant, causing the power factor to plunge. Conversely, during charging, active power drawn from the grid increases, temporarily driving the power factor up.



ESS Discharging: Active Power ↓ , Reactive Power ↔ => Power Factor ↓

ESS Charging: Active Power ↑ , Reactive Power ↔ => Power Factor ↑



For medium-voltage (10kV/35kV) grid-tied energy storage systems, these real-time drops during discharge can severely degrade local power quality. Just like medium-voltage PV systems, it is highly recommended to install an SVG on the medium-voltage busbar for dynamic reactive power compensation. While an Energy Management System (EMS) could theoretically dispatch the storage Power Conversion System (PCS) to inject reactive power, doing so increases the copper and iron losses of the ESS, ultimately reducing the project's lifecycle revenue.
