Xiamen D.T. Multi Tech Co., Ltd. is one of the most reliable manufacturers and suppliers of solar street light in China. With abundant experience, we warmly welcome you to wholesale cheap solar street light from our factory. If you have any enquiry about cooperation, please feel free to email us.
Commercial & Industrial Lighting

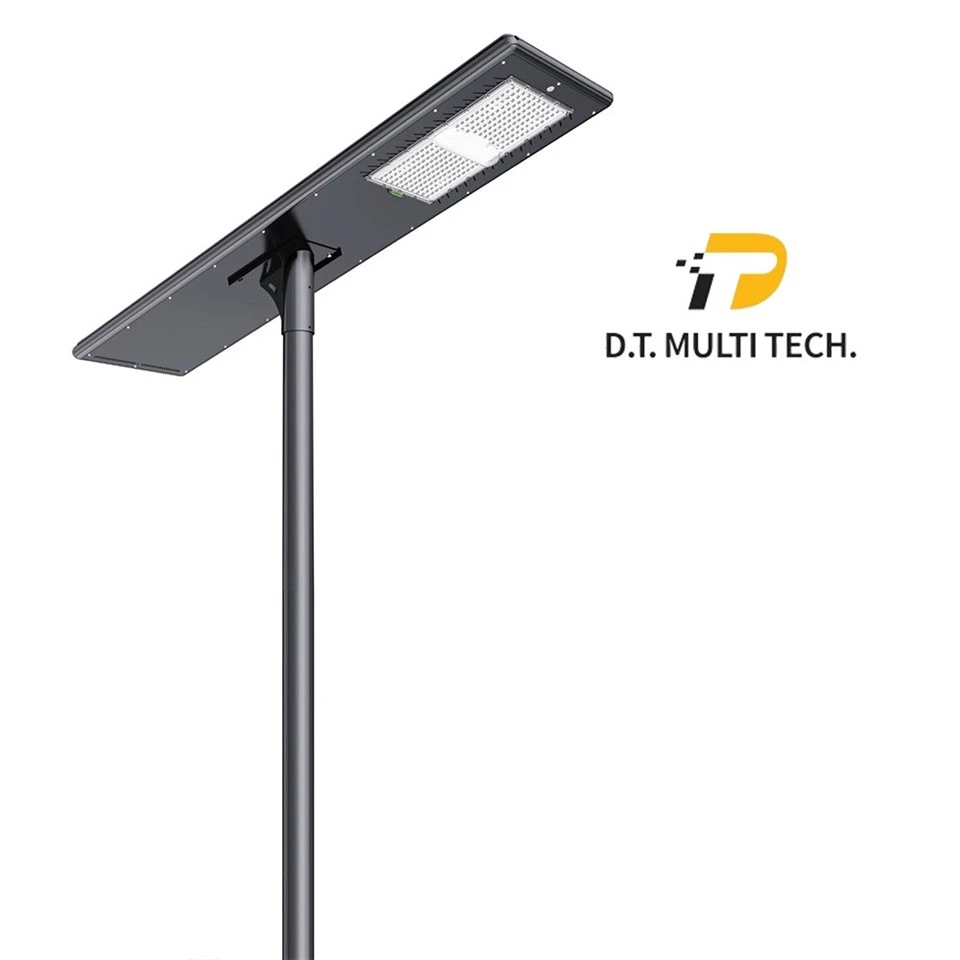

The RSK Series All in One Solar Street Light is engineered for modern municipal infrastructure, commercial property perimeters, industrial parks, and rural road development projects. By integrating high-efficiency monocrystalline solar panels, Grade-A LiFePO4 battery modules, intelligent power controllers, and professional optics into a single corrosion-resistant aluminum housing, this series provides a complete, low-maintenance off-grid illumination solution built for long-term operational stability.
Core Technologies
Parameter
| Type | RSK-40 | RSK-60 | RSK-80 | RSK-120 |
| Lamp head | ||||
| LED chip | 140pcs | 240pcs | ||
| Luminous flux | 4000lm | 6000lm | 10000lm | 15000lm |
| Beam angle | 150*70° | |||
| Lifespan | 50000hrs | |||
| IP Rating | IP65 | |||
| Working temperature | -20°C~60°C (Charge above 0°C) | |||
| Color temperature | 3000-7500K | |||
| CRI | Ra≥70 | |||
| SOLAR PANEL | ||||
| Power | 42W | 60W | 90W | 120W |
| Voltage | 6V | 18V | ||
| Solar cell efficiency | 19%-22% | |||
| Material | Monocrystalline silicon | |||
| BATTERY | ||||
| Capacity | 144WH/45AH | 240WH/75AH | 384WH/120AH | 640WH/200AH |
| Lighting time(full charged) | 5-7 rainy days | |||
| Lithium battery | LiFePO4 | |||
| INSTALLATION | ||||
| Top diameter of pole | 60mm | 76mm | ||
| Mounting height | 4-6M | 6-7M | 6-8M | 8-10M |
| Installation spacing | 20-40M | |||
Products Description
Zero Electricity Bills:
The system operates entirely independent of the electrical grid. Equipped with high-conversion monocrystalline solar cells (up to 22% efficiency), this off-grid capability eliminates recurring utility bills and ongoing power grid connection charges.
Wireless Installation:

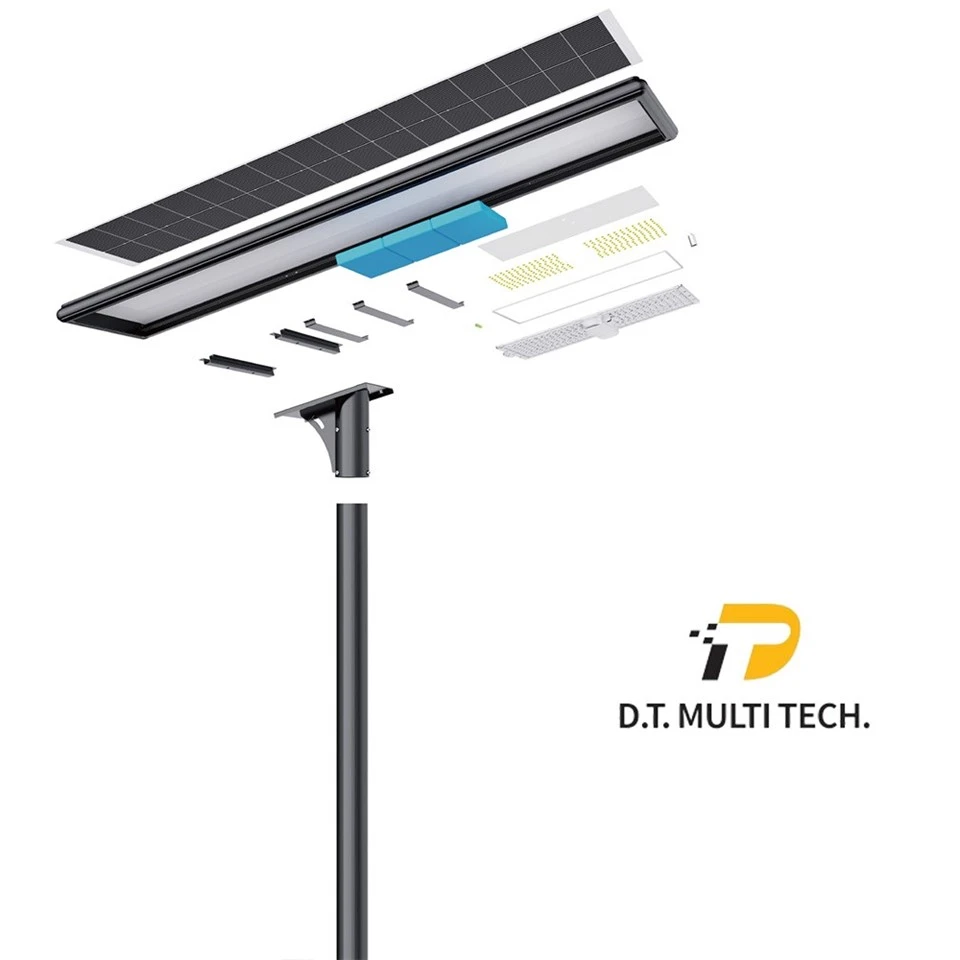

The All in One solar street light features a completely wireless, self-contained architecture. All core components-solar panel, battery, controller, and light source-are enclosed in a single modular unit, reducing site labor, civil works, and environmental disruption.
Rapid Pole-Top Mounting:
Installation requires minimal site preparation. The pre-assembled fixture mounts directly onto existing or new lighting poles. An installation crew can secure a single fixture in 5 to 10 minutes using standard mounting hardware, cutting deployment timelines on large-scale infrastructure projects.
Flexible Lighting Modes:
Controlled via a dedicated mobile app, the system features multiple selectable working modes (such as T, L, U, M, and DEMO test modes). This allows operators to easily customize lighting profiles and adaptive power settings to meet diverse site conditions and energy-saving requirements.
3-Year Commercial Warranty:
The solar street light is constructed with an anti-corrosion die-cast aluminum alloy body and sealed with IP65-rated silicone gaskets. Each unit is backed by a full 3-year commercial manufacturer warranty covering all electronic, battery, and LED components.
FAQ
Q: What type of solar panel and battery technology does the RSK Series use?
A: The RSK Series features high-efficiency monocrystalline solar panels with up to 22% conversion efficiency and Grade-A LiFePO4 (Lithium Iron Phosphate) battery cells.
Q: What is the total luminous efficacy and optics distribution of these fixtures?
A: The RSK Series utilizes high-efficiency LED chips delivering a total system light output of ≥160 lm/W. It features a specialized batwing optical lens with a 150°*70° beam angle, designed to project uniform light across wide road surfaces.
Q: Can we customize a specific dimming schedule for our municipal project requirements?
A: Absolutely. Beyond the standard factory modes, the intelligent controller can be customized via the mobile app to suit specific local municipal standards, adjusting output levels according to time windows or motion sensor triggers.
Q: Is the mounting bracket angle adjustable?
A: Yes, the sleeve bracket features a rotating angle design, allowing installers to adjust the tilt angle relative to the road width to optimize both solar absorption and ground light coverage.
Q: What certification packages do you provide for tender submissions and customs clearance?
A: We supply complete compliance documentation, including CE, RoHS, IP65 waterproof testing, IEC reports, and UN38.3 + MSDS safety certification packages for air and sea lithium battery transport.
