Description

Xiamen D.T. Multi Tech Co., Ltd. is one of the most reliable manufacturers and suppliers of solar power storage for home in China. With abundant experience, we warmly welcome you to wholesale cheap solar power storage for home from our factory. If you have any enquiry about cooperation, please feel free to email us.

INTRODUCTION

Welcome to the future of energy independence-introducing our Solar Power Storage for Home. Harness the sun's limitless energy and break free from traditional power constraints. Our innovative system allows you to store excess solar energy during the day, ensuring a continuous and reliable power supply when the sun sets or during outages. Tailored for residential use, this smart solution not only maximizes your solar investment but also offers the freedom to manage and control your energy consumption. Embrace sustainability, reduce utility costs, and experience the convenience of a self-sufficient home with our Solar Power Storage. Empower your living space with clean, efficient, and uninterrupted energy.

Storage Battery	5KWH/10KWH
Solar Input Current	60A/80A
AC Output Voltage	80-130V/160-240V
Battery Rate Voltage	51.2V
Solar Input Voltage	72V
Size (L/W/H)	6003001000mm
Weight (Kg)	80-130

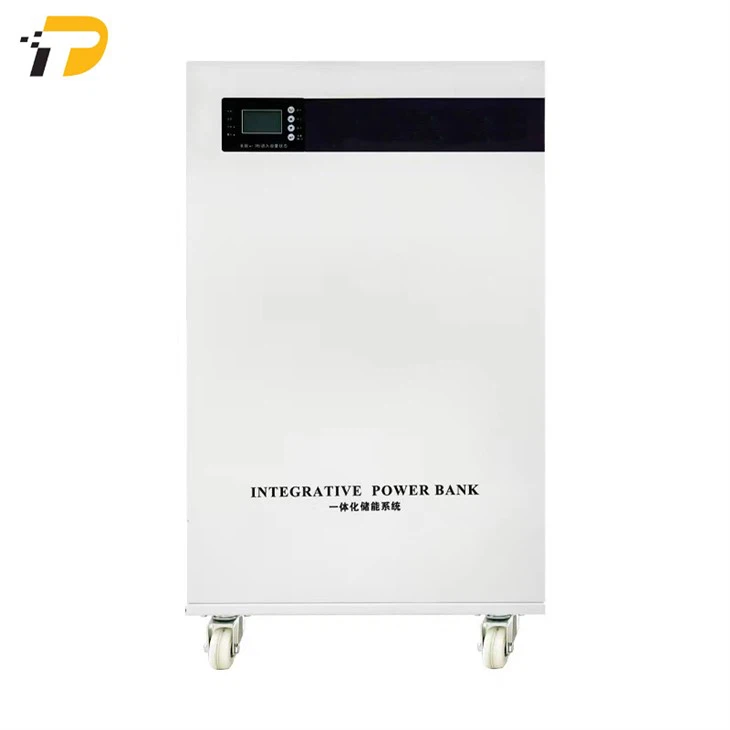

PRODUCT DIAGRAM

product-900-900

ADVANTAGES

Less mode Switch Time
The output is not affected by any power failure when the device's operating mode is switched within less than 5ms at the fastest

Easy Installation
Reduce the product's requirements for the installation environment and reduce the difficulty of installation; increase the flexibility of system movement.

Four-corner Horizontal Pads
Avoid the occurrence of electrical conduction caused by the direct contact of the metal shell with the ground, which will cause unnecessary losses; in addition, the adjustable foot design is more helpful for moisture-proofing the product and reducing the need for ground flatness.

Industrial Frequency Inverter

It has high stability and high load capacity. Allow users to use this product to connect high-power electrical appliances.

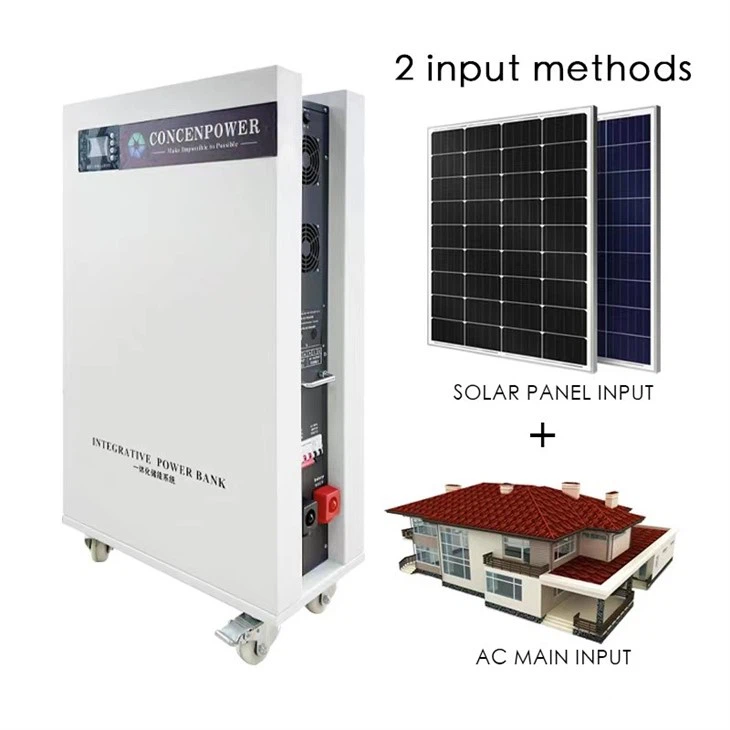

APPLICATION SCENARIOS

application scenarios of solar power storage

PRODCUTS DESCRIPTION

General Information
Product No.	CON-H53	CON-H55	CON-H510	CON-H103	CON-H105	CON-H1010
Product size	6003001000 mm
Product weight	80kg	91kg	130kg	120kg	128kg	130kg
Package size	6953951150 mm
Product grsss weight	106kg	117kg	156kg	146kg	154kg	156kg
Working temperature	0~ 40*C
Working alitude	less than 2000m
Battery information
Battery type	Lithium iron phosphate battery
Battery rate voltage	51.2V
Battery capacity	5000 Wh			10000 Wh
AC output information
Inverter type	Pure sine wave frequency inverter
Inverter rate power	3kw	5kw	10kw	3kw	5kw	10kw
Inverter MAX. power	6kw	10kw	20kw	6kw	10kw	20kw
AC output voltage	80-130V/160-240V
AC output frequency	50Hz - 60Hz intelligent monitor
Product input information
AC input voltage	80-130V/160-2404
AC input frequency	50Hz- 60Hz intelligent monitor
Solar controller	Build-in MPPT
Solar input voltage	72V
Solar input currency	60A/80A
Protection system
Over/ under voltage protection	YES
Over current protection	YES
Over/ under temperature protection	YES
DC breaker	YES

PRODUCT CERTIFICATIONS

product-900-705

WORKSHOP SHOW

product-900-1099

Products Description

exhibition photo

FAQ

Q1. Who are we?

D.T. MULTI TECH CO.,LTD. is headquartered in Xiamen City, Fujian Province, China, and provides integrated technology and product solutions for PV and battery storage.

Q2. What is the estimated delivery timeline?

Typically, production requires approximately two weeks.

Q3. How are your products packaged?

Standardized packing on normal products. If you have any specific packaging preferences or requirements, we can accommodate them, although any associated fees for customized packaging will be the responsibility of the customer.

Q4. What's the price and MOQ?

MOQ: One set
Please kindly submit your inquiry, and we assure you a response within 24 hours. We will promptly provide you with the most up-to-date pricing information

Q5. How do I get technical support for your products?

Our highly dedicated technical support team is available at any time to assist you. You can reach out to us via email, phone and all kinds of social media and we will promptly and professionally address any technical inquiries or concerns you may encounter. On the second stage, we can support locally after signed contract.

Q6. Are your products certified and compliant with industry standards?

Absolutely, we have had all kinds of market access certificate for all main markets all over the world and follow up industry standards strictly with rigorous testing, securing certifications.
